Overview

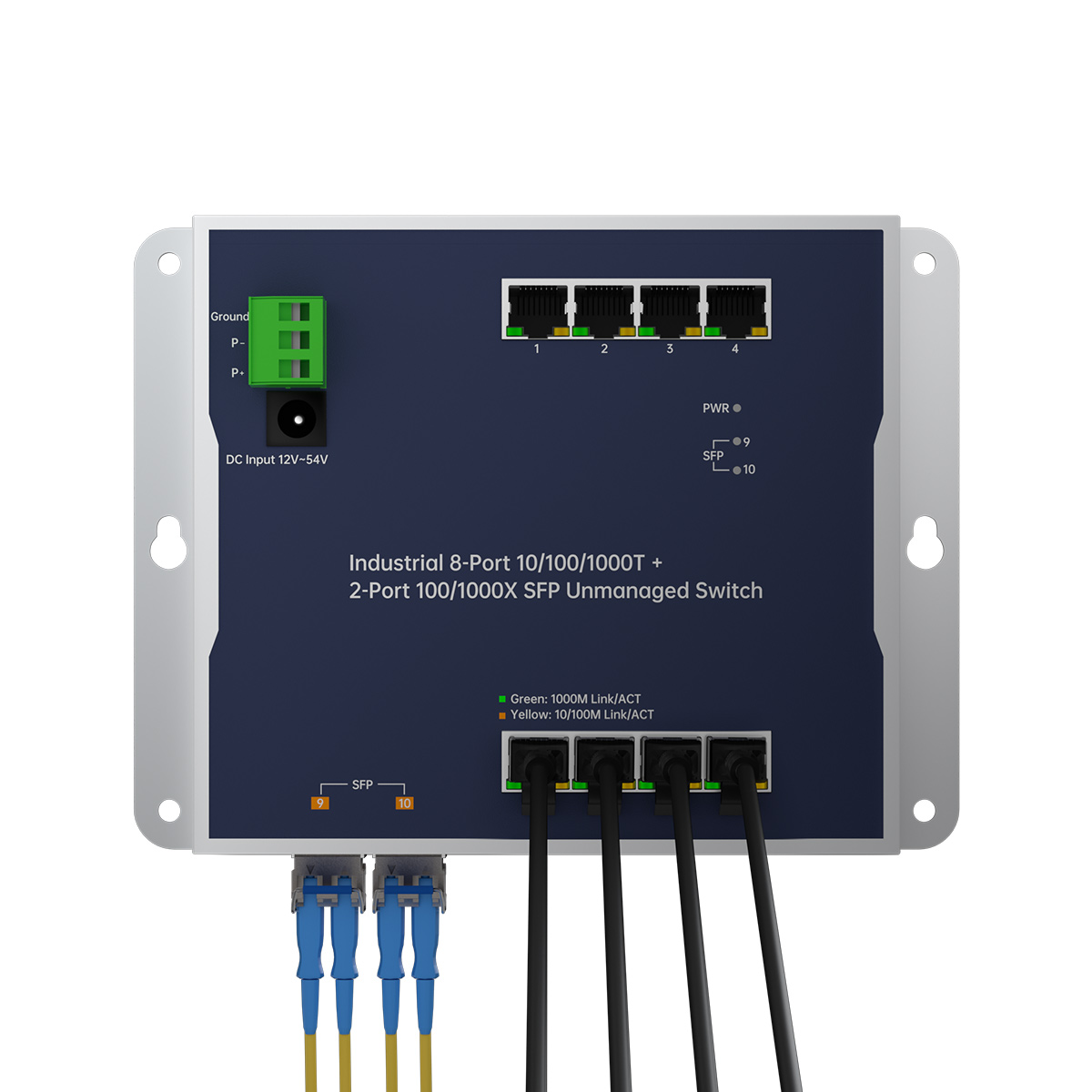

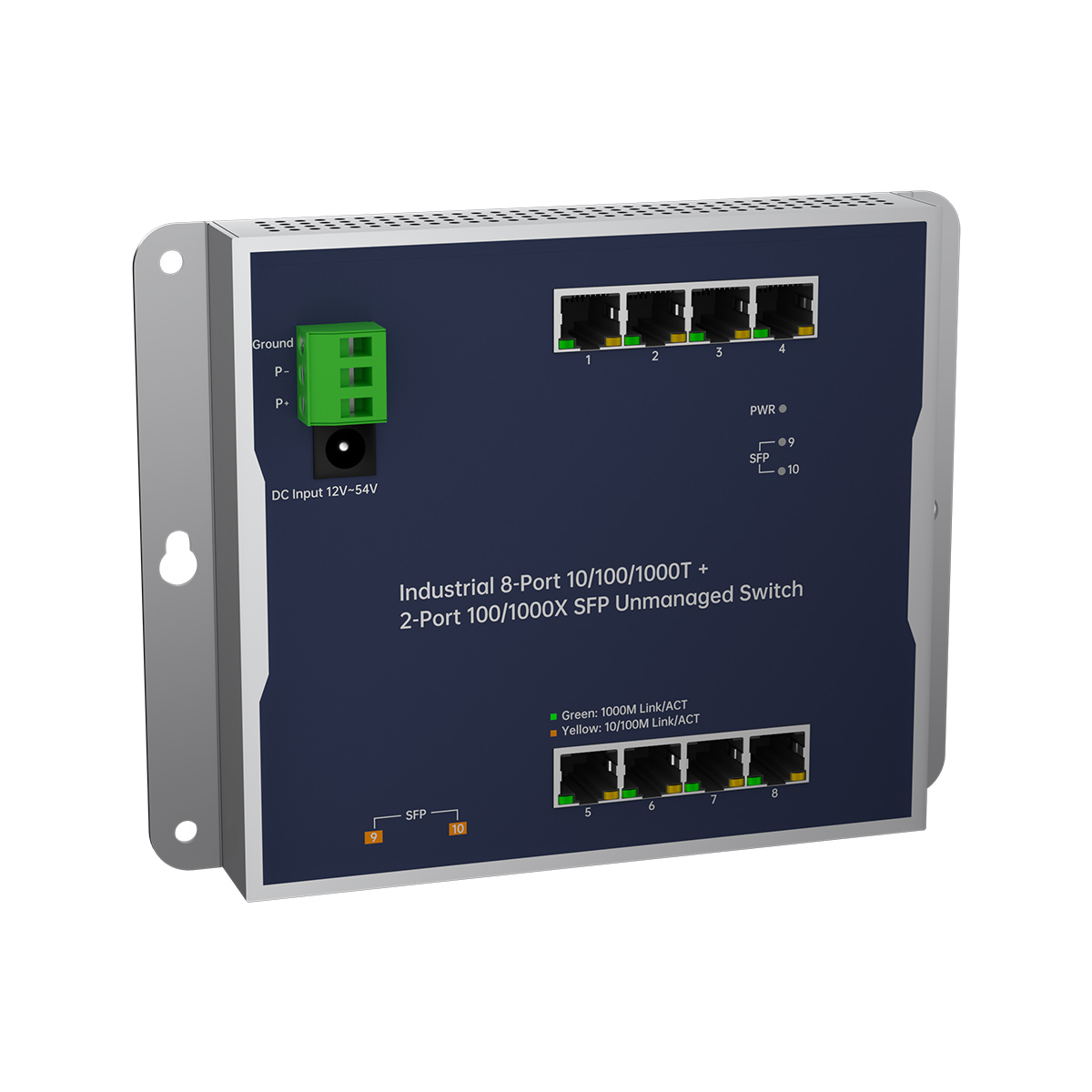

IES211W-8PGE2GF-DC, Flat-type 8 Port Gigabit Industrial PoE Switch,with 2 Gigabit SFP Uplink, Wall-mount or DIN-Rail Mount
Features
Ultra-Slim Flat Design for Space-Constrained Installations
The PoE switch’s flat, compact form factor minimizes footprint, making it ideal for tight spaces like control cabinets, utility poles, or narrow enclosures. Unlike bulky traditional switches, this design enables wall or DIN-rail mounting without obstructing airflow or adjacent equipment. Perfect for smart city, transportation, and industrial automation applications where space is limited. The sleek profile supports high-density deployment while maintaining serviceability and thermal efficiency—delivering enterprise-grade performance in a minimal footprint.
8-Port Gigabit PoE+ with Full Power Budget Support
Equipped with 8 IEEE 802.3af/at-compliant PoE+ ports, the switch delivers up to 30W per port, supporting high-power devices like PTZ cameras, wireless access points, and VoIP phones. With full gigabit speeds on all ports, it ensures zero latency and maximum throughput for bandwidth-intensive applications. The total power budget is optimized for simultaneous PoE operation, enabling reliable plug-and-play deployment across surveillance, building automation, and edge networks—reducing cabling complexity and power sourcing costs.

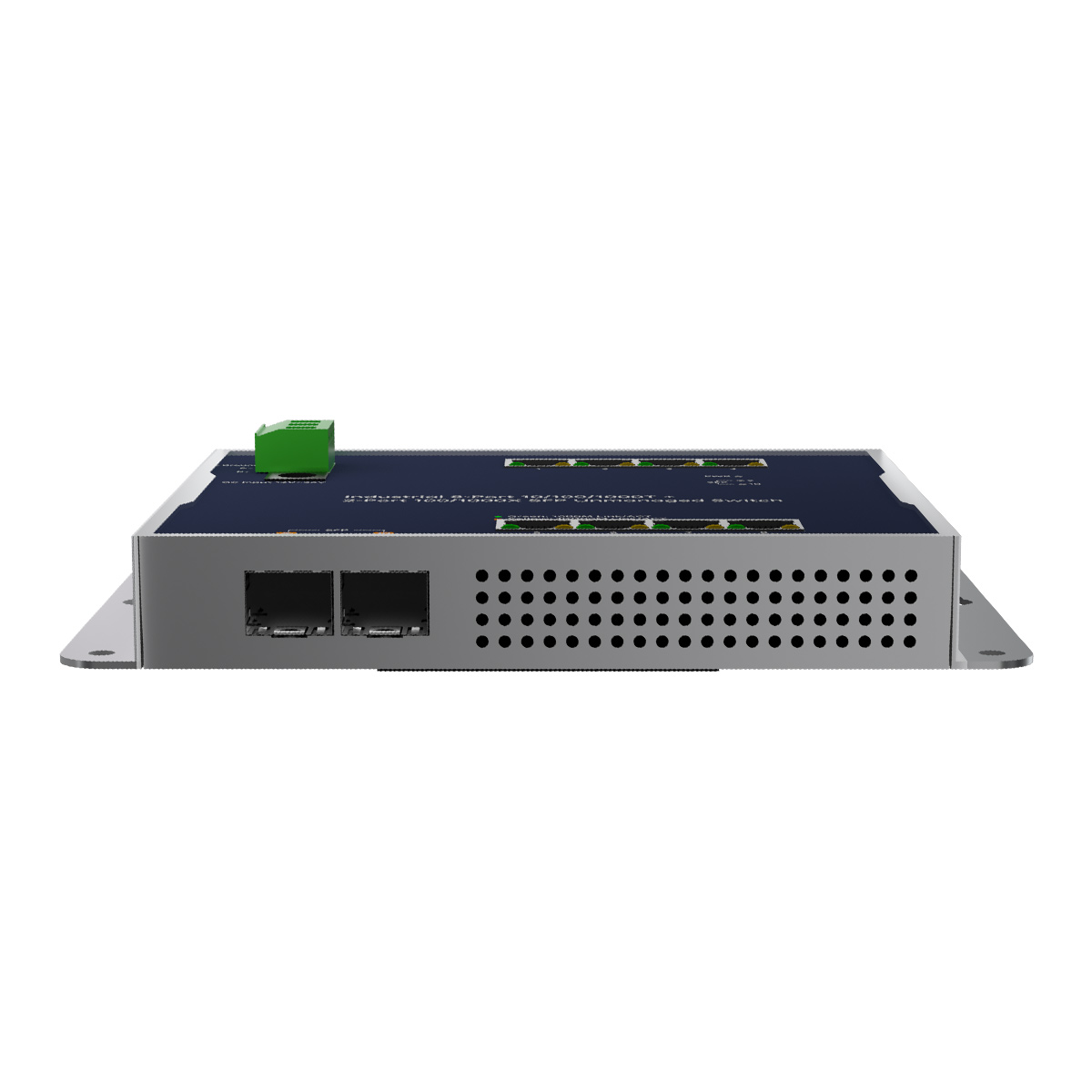

Dual Gigabit SFP Uplinks for Fiber Connectivity
Two 1.25G SFP slots support fiber optic uplinks for long-distance, EMI-immune backbone connections up to 80km (depending on fiber module). This enables seamless integration into ring or star topologies, ideal for industrial networks spanning multiple zones. Fiber uplinks enhance network reliability in high-noise environments such as substations, railways, or factories. Auto-negotiation and link-fault pass-through ensure fast failover and stable core connectivity—critical for mission-critical infrastructure requiring low latency and high availability.
Rugged Industrial Design with IP40 Rating & Redundant Power
Built for harsh environments, this flat-type industrial switch features an IP40-rated metal housing that protects against dust and solid contaminants. It supports dual DC power inputs (48–54V), enabling redundant power supply for uninterrupted operation during outages. Wide operating temperature range (-40°C to +75°C) ensures stability in extreme conditions—from freezing outdoor cabinets to overheated industrial sites. Conformal coating options are available for corrosion resistance, making it ideal for oil & gas, traffic systems, and renewable energy applications.
High-Level ESD and Surge Protection
Engineered for electromagnetic resilience, the flat-type industrial poe switch supports ±8kV contact and ±15kV air discharge ESD protection on all ports. This guards against static damage during installation and operation in dry, high-static environments. Integrated surge protection on power and data lines ensures durability in lightning-prone or high-interference areas. These protections extend device lifespan, reduce field failures, and lower maintenance costs—making it a trusted choice for outdoor and industrial deployments where reliability is non-negotiable.

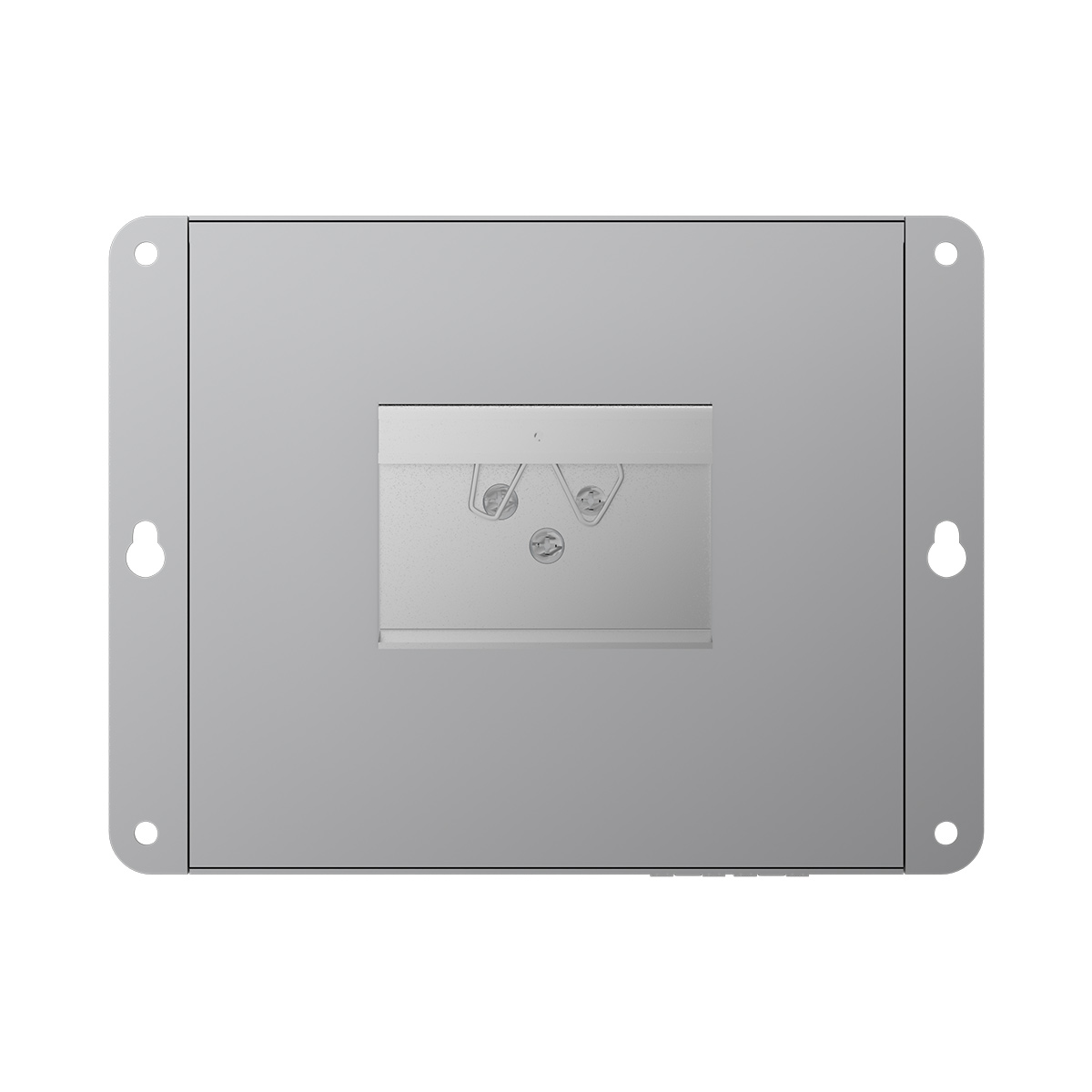

Flexible Mounting: Wall & DIN-Rail Options
Designed for versatile installation, this poe switch supports both wall mounting and standard 35mm DIN-rail attachment—ideal for control panels, junction boxes, or vertical surfaces. Tool-less rail clips enable quick deployment and easy maintenance. The mounting flexibility reduces integration time and supports rapid scalability across distributed networks. Whether deployed in a factory floor cabinet or roadside enclosure, its adaptability streamlines installation and improves service efficiency—perfect for system integrators and OEMs seeking plug-and-play readiness.
Connectivity Solutions

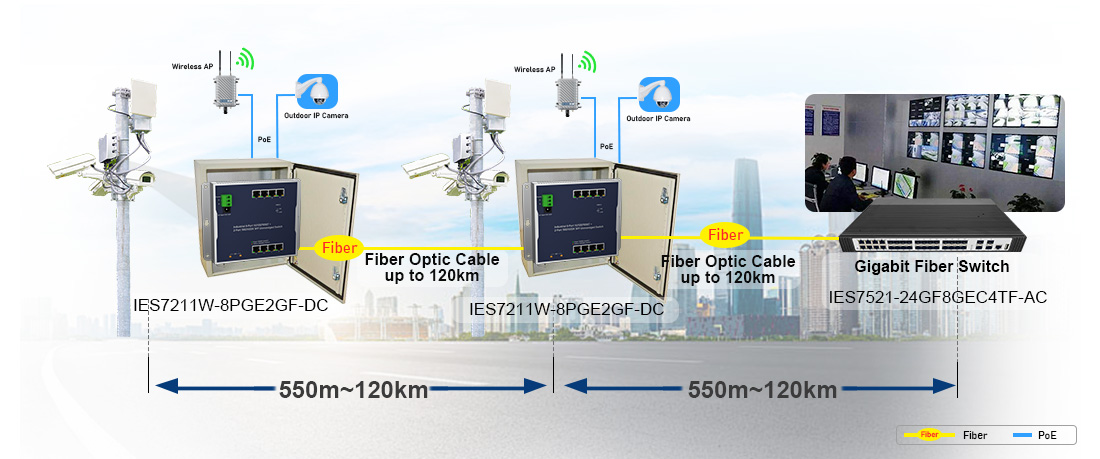

Flat-type Industrial PoE++ switch 8 Port with 2 Gigabit SFP Uplink of Application Solution

Specification
Especificaciones técnicas :
IE7211W-8PGE2GF-DCPuertos de cobre RJ45 de 10M/100M/1G :
8Puertos SFP (fibra) de 1,25G :
2Puertos PoE/PoE+ :
8Alimentación a través de Ethernet :
*Estándar PoE :
Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE; Backward compatible with IEEE 802.3af Power over EthernetTipo de fuente de alimentación PoE :
End-span: 1/2(+), 3/6(-)Salida de alimentación PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af); Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)Especificación de rendimiento :
*Memoria intermedia de paquetes :
2.1 MbModos de reenvío :
Store-and-forwardBanda ancha :
24 GbpsTasa de reenvío de paquetes :
14.88Mpps (64 byte packet size)Tamaño de la base de datos de direcciones MAC :
4K (48-bit MAC ad-dresses)Soporte de marco gigante :
9KTiempo medio entre fallos :
162,125 hours (MTBF) @ 25°CLatencia de cobre de 100M :
8.532µs; 8.613µs; 8.712µsLatencia de cobre 1G :
3.435µs; 3.541µs; 3.643µsLatencia de fibra 1G :
2.993µs; 3.112µs; 3.183µsProtocolos de red IEEE :
*Protocolos :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE)LED :
YesPor puerto :
Speed, Link, Activity; PoE in different modePor dispositivo :
PowerEspecificaciones físicas :
*Dimensiones (Ancho * Fondo * Alto) :
178 x 134 x 24 mm (5.91 x 5.12 x 1.89 in)Peso :
0.69 kg (1.52 lb)Protección de concha :
P40 high-strength caserequerimientos de energía :
DC 48~54V, redundant power with reverse polarity protectionAdmirador :
FanlessEspecificaciones ambientales :
*Temperatura de funcionamiento :
-40° to 75°C (-40° to 176°F)Humedad de funcionamiento :
95% maximum relative humidity (RH), non-condensingAltitud de funcionamiento :
10,000 ft (3,000 m) maximumTemperatura de almacenamiento :
-40° to 85°C (-40° to 185°F)Humedad de almacenamiento (relativa) :
95% maximum relative humidity, non-condensingAltitud de almacenamiento :
10,000 ft (3,000 m) maximumEstándar ejecutivo y protección :
*Protección contra rayos :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Parte 15/CISPR22 (EN55022) :
Class BCEI 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (campo magnético pulsado) :
1000A/mIEC61000-4-10 (oscilación amortiguada) :
30A/m, 1MHzIEC61000-4-12/18 (onda de choque) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (transmisión en modo común) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (transmisión por radiofrecuencia) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (sobretensión): cable de alimentación :
CM±4kV/ DM±2kV, Data cable: ±4kVPropiedades mecánicas :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockEmisiones electromagnéticas e inmunidad :
*Certificaciones :
CE mark, commercial; FCC Part 15 Class A, VCCI Class A; Class A EN 55022 (CISPR 22) Class A; Class A C-Tick; EN 55024; CCC; 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A; ANSI C63.4:2014; IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Seguridad :
*Certificaciones de seguridad :
CB mark, commercial; CSA certified (CSA 22.2 #950); UL listed (UL 1950)/cUL IEC 950/EN 60950; EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ;(ed.2)+A1:2009+A2:2013; AN/NZS 60950.1:2015; CCC (China Compulsory Certificate)Garantía y soporte :
*Garantía limitada de hardware :
Limited Lifetime*Soporte técnico por teléfono y correo electrónico* :
Limited Lifetime*Soporte técnico por chat en línea 24 horas al día, 7 días a la semana :
Limited Lifetime*contenidos del paquete :
*Todos los modelos :
Industrial PoE Switch; Brackets and screws for DIN-Rail mounting, which are already installed in the switch; Rubber protection caps, which are already installed in the SFP sockets, Installation guideTipo de negocio :
Industrialbandido :
1GMás filtros :
Unmanaged
