16 Ports Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink (IES7221-16PGE4GC-4BT-AC)

16 Port Industrial POE++ Switch
16 Port Industrial POE++ Switch Unmanaged
16 Port Industrial POE++ Network Switch
16 Port Industrial POE++ Ethernet Switch

16 Ports Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink (IES7221-16PGE4GC-4BT-AC)

Pregunte ahora

Designed for IP Camera/Wireless Access Point

Product Highlights
    • 4-10/100/1000Mbps RJ45 ports with PoE++ (Port 1-port 4)
    • 12-10/100/1000Mbps RJ45 ports with PoE+ (Port 5-port 16)
    • 4-Gigabti RJ45/SFP port for uplink
    • Complies with IEEE 802.3af/at/bt Power over Ethernet
    • Supports PoE power up to 90 watts for Port 1 to 4
    • Supports PoE power up to 30 watts for Port 5 to 16
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • DC for Ethernet ESD protection
    • -40 to 85 degrees operating temperature
    • IP40 Industrial design with dual power input
    • Din Rail mounting installation
    • Backplane bandwidth 128Gbps，Packet forwarding rate 35.72Mpps，MAC address 8k

16 Port industrial POE++ switch authentication

Overview



IES7221-16PGE4GC-4BT-AC, 16 Ports Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink,4 PoE++(90W) and 12 PoE+(30W) Ports, 500W Power budget

IES7221-16PGE4GC-4BT-AC is a robust and high-performance industrial PoE++ switch designed to meet the demands of modern, high-speed networks. Featuring 16 Gigabit PoE ports, it includes 4 PoE++ ports with up to 90W output each and 12 PoE+ ports delivering 30W per port, ensuring seamless power and data transmission for high-consumption devices like PTZ cameras, LED displays, and wireless access points. With a 500W power budget, this switch provides reliable connectivity for large-scale deployments.

The 4 RJ45/SFP combo uplink ports offer flexible options for high-speed uplinks, enabling long-distance transmission and scalability through fiber connectivity. Its gigabit capability ensures optimal bandwidth for video surveillance, IoT applications, and real-time data processing in industrial, commercial, or smart city environments.

Engineered for industrial use, it features a rugged design to operate in extreme conditions, ensuring stable performance in temperature-sensitive or remote installations.

The IES7221-16PGE4GC-4BT-AC delivers exceptional value by simplifying installation, reducing infrastructure costs, and offering reliable, high-speed connectivity tailored for mission-



Physical Port

  • 4-10/100/1000BASE-TX Gigabit Ethernet RJ45 ports with PoE++  (Ports 1 to 4)
  • 12-10/100/1000BASE-TX Gigabit Ethernet RJ45 ports with PoE+  (Ports 5 to 16)
  • 4-Gigabit RJ45/SFP Combo  (Ports 17 to 20)



Power over Ethernet

  • Complies with IEEE 802.3bt Power over Ethernet Plus Plus
  • Backward compatible with IEEE 802.3at/af Power over Ethernet
  • Up to 4 ports of IEEE 802.3bt devices powered
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 90 watts for port 1 to 4
  • Supports PoE power up to 30 watts for port 5 to 8
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters

Switching

  • Backplane bandwidth 24Gbps，Packet forwarding rate 14.88Mpps，MAC address 8k
  • Hardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation



Hardware

  • Industrial Case and Installation
  • IP40 High- strength Aluminum case
  • DIN-rail mount design
  • 48~56V DC, redundant power with reverse polarity protection
  • Supports 8KV DC Ethernet ESD protection
  • -40 to 85 degrees C operating temperature
  • LED indicators for Power,PoE Working and LINK/ACT





Features



Gigabit Ethernet Port and Gigabit Fiber Port Configuration

Bench group's IES7211-8PGE2GF-4BT-DC Gigabit Industrial UPoE+ Switch provide  4 PoE++ 10/100/1000Mbps RJ45 ports, 4 PoE+ 10/100/1000Mbps RJ45 ports, and 2-1.25G SFP uplink, support IEEE820.3af/at/bt provide up to 90W for port 1 to 4, support IEEE820.3af/at provide up to 30W for port 5 to 8, support  redundant power .

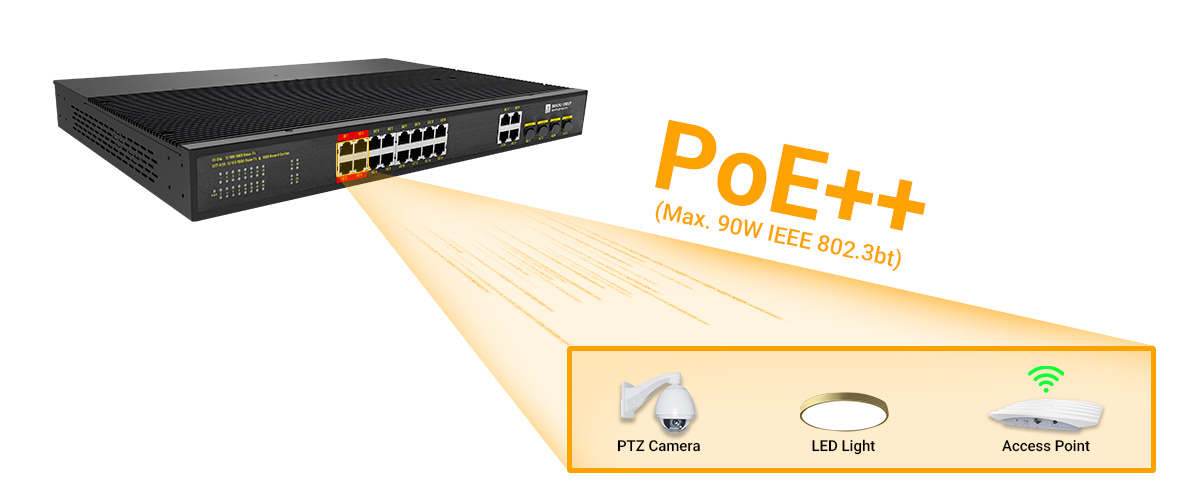

802.3bt PoE++ up to 90W (Type 4) per port

Benchu group's gigabit UPoE+ Switch SP5210-8PGE2G1GF-4BT Support PoE++ protocol, defined by the IEEE 802.3bt standard, significantly enhances Power over Ethernet capabilities, delivering up to 90W (Type 4) per port. This high power output supports advanced devices such as high-definition PTZ cameras, LED lighting, and digital signage. PoE++ ensures efficient power distribution and data connectivity through a single Ethernet cable, simplifying installation and reducing infrastructure costs. It maintains backward compatibility with previous PoE standards (IEEE 802.3af/at), allowing seamless integration with existing network devices while enabling the deployment of newer, power-intensive applications.



 IP40 High-strength Aluminum Case Gives to Lightweight and Easy Installation

The IP40 robust aluminum construction guards against impacts, dust, and other contaminants, ensuring the switch’s internal components remain safe and functional in demanding industrial environments.Despite its strength, the aluminum case is lightweight, making the industrial PoE switch easier to handle and install. The reduced weight simplifies mounting and positioning, particularly in complex industrial setups or confined spaces. This ease of installation saves time and effort for technicians and supports quicker deployment of network infrastructure.



Redundant power gives to Operational Safety

Benchu group's IES7211-8PGE2GF-4BT-DC gigabit Industrial UPoE+ Switch with redundant power, Redundant power systems in industrial UPoE+ switches contribute to operational safety by ensuring that network devices continue to receive power even during power supply issues. This continuous power delivery prevents sudden shutdowns, protecting sensitive equipment from damage and maintaining the integrity of ongoing processes. Operational safety is vital in industries such as manufacturing, healthcare, and utilities.



Wide Operating Temperature Design gives to Enhanced Equipment Protection

Benchu group's IES7211-8PGE2GF-4BT-DC gigabit Industrial UPoE+ Switch designed for wide temperature ranges often come with additional rugged features, such as enhanced surge protection and robust housings. These features protect the switch and connected devices from electrical surges, moisture, dust, and physical impact. This added protection extends the lifespan of the equipment, reducing the frequency of maintenance and replacements. By safeguarding against environmental hazards, these switches ensure that critical network infrastructure remains secure and operational, even in the most demanding conditions, ultimately providing greater reliability and lower total cost of ownership.



8kV Lightning Protection Gives to Improved Network Uptime

Benchu group’s 8 Ports Gigabit Industrial UPoE+ Switch SP7211-8PGE2GF-4BT-DC with 8kV lightning protection ensures the industrial UPoE+ switches meets stringent safety and industry standards. Compliance with these standards guarantees the switch’s suitability for deployment in hazardous or high-risk environments, providing peace of mind to operators. Adhering to safety regulations is crucial for industries such as manufacturing, energy, and transportation, where electrical safety is paramount.





Connectivity Solutions



16 Port Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Uplink Connectivity Solution









Specification



  • Especificaciones técnicas :

    IES7221-16PGE4GC-4BT-AC

  • Puertos de cobre RJ45 de 10M/100M/1G :

    16

  • Combinación Gigabit R4J5 y SFP :

    4

  • Puertos PoE/PoE+ :

    12 (up to 30W per port)

  • Puertos PoE / PoE+ / PoE++ / UPoE+ :

    4 (up to 90W per port)

  • Alimentación a través de Ethernet :

    *

  • Estándar PoE :

    IEEE 802.3bt Power over Ethernet Plus Plus / PoE++； Backward compatible with IEEE 802.3af/at Power over Ethernet

  • Tipo de fuente de alimentación PoE :

    End-span: 1/2/4/5 (+), 3/6/78 (-)

  • Salida de alimentación PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) ； Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)

  • Especificación de rendimiento :

    *

  • Memoria intermedia de paquetes :

    8.2 Mb

  • Modos de reenvío :

    Store-and-forward

  • Banda ancha :

    128 Gbps

  • Tasa de reenvío de paquetes :

    35.72Mpps (64 byte packet size)

  • Tamaño de la base de datos de direcciones MAC :

    8K (48-bit MAC ad-dresses)

  • Soporte de marco gigante :

    9K

  • Protocolos de red IEEE :

    *

  • Protocolos :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow

  • Supervisión :

    *

  • LED :

    Yes

  • Por puerto :

    Speed, Link, Activity; PoE in different mode

  • Por dispositivo :

    Power

  • Especificaciones físicas :

    *

  • Dimensiones (Ancho * Fondo * Alto) :

    440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)

  • Peso :

    <6.6 kg (11.55 lb)

  • El consumo de energía :

    500W (when all ports used, line-rate traffic and max PoE)

  • máximo poder :

    16W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Consumo de energía inactivo :

    10W (all ports link-down standby) (Watts)

  • Ethernet energéticamente eficiente (EEE) :

    Yes (deactivated by default)

  • Admirador :

    Fanless

  • Especificaciones ambientales :

    *

  • Temperatura de funcionamiento :

    -30° to 75°C (-22° to 167°F)

  • Humedad de funcionamiento :

    95% maximum relative humidity (RH), non-condensing

  • Altitud de funcionamiento :

    10,000 ft (3,000 m) maximum

  • Temperatura de almacenamiento :

    -40° to 85°C (-40° to 185°F)

  • Humedad de almacenamiento (relativa) :

    95% maximum relative humidity, non-condensing

  • Altitud de almacenamiento :

    10,000 ft (3,000 m) maximum

  • Estándar ejecutivo y protección :

    *

  • Protección contra rayos :

    *

  • IEC61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Parte 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (campo magnético pulsado) :

    1000A/m

  • IEC61000-4-10 (oscilación amortiguada) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onda de choque) :

    CM 2.5kV, DM 1kV

  • IEC61000-4-4(EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmisión en modo común) :

    30V, 300V, 1s

  • IEC61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmisión por radiofrecuencia) :

    10V(150kHz~80MHz)

  • IEC61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (sobretensión): cable de alimentación :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propiedades mecánicas :

    *

  • IEC60068-2-6 :

    Anti Vibration

  • IEC60068-2-32 :

    Free Fall

  • IEC60068-2-27 :

    Anti Shock

  • Emisiones electromagnéticas e inmunidad :

    *

  • Certificaciones :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Seguridad :

    *

  • Certificaciones de seguridad :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantía y soporte :

    *

  • Garantía limitada de hardware :

    Limited Lifetime*

  • Soporte técnico por teléfono y correo electrónico* :

    Limited Lifetime*

  • Soporte técnico por chat en línea 24 horas al día, 7 días a la semana :

    Limited Lifetime*

  • contenidos del paquete :

    *

  • Todos los modelos :

    Smart Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Tipo de negocio :

    Industrial

  • bandido :

    1G

  • Más filtros :

    Unmanaged
