IES7221-24PGE4GC-4BT-AC, 24 Ports Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink,4 PoE++(90W) and 20 PoE+(30W) Ports, 500W Power budget
|
Physical Port
Power over Ethernet
|
Switching
Hardware
|
Features

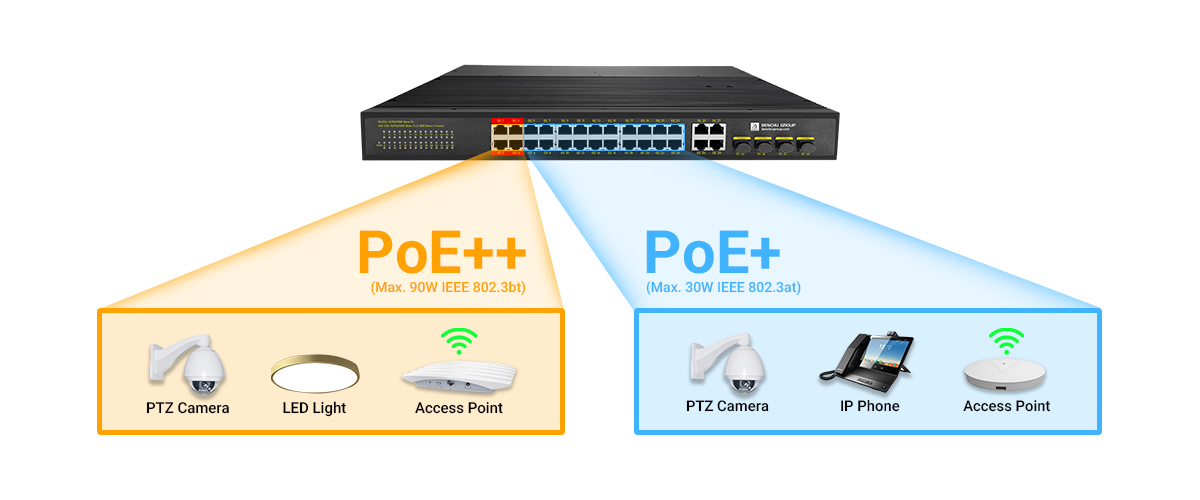

High-Power PoE++ Support
Equipped with 4 PoE++ (90W) and 20 PoE+ (30W) ports, the IES7221-24PGE4GC-4BT-AC offers a total 500W power budget, meeting the power-intensive needs of modern devices such as PTZ cameras, high-performance wireless APs, and industrial IoT equipment. This eliminates the need for additional power adapters, simplifying deployment and reducing cabling costs. Its ability to support diverse power requirements makes it suitable for applications requiring both high-power and standard PoE devices, ensuring versatility and scalability in industrial networks.

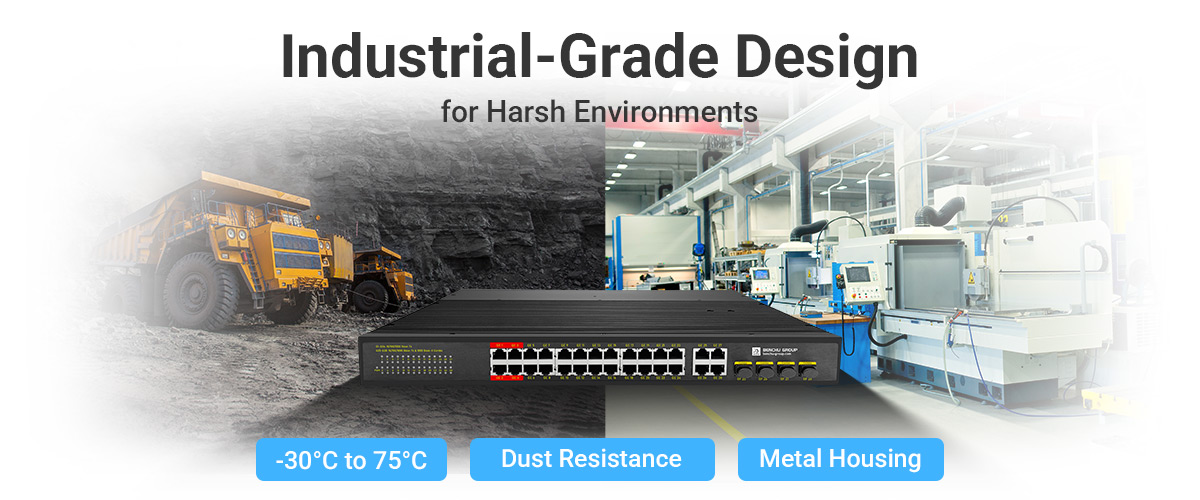

Industrial-Grade Design for Harsh Environments
Built to endure extreme industrial conditions, the IES7221-24PGE4GC-4BT-AC operates reliably in temperatures ranging from -30°C to 75°C. The rugged construction and high-quality materials ensure durability and resistance to environmental factors like dust, moisture, and vibration. It is ideal for outdoor or semi-outdoor installations in challenging environments, including factories, mines, and smart transportation systems. This robust design provides uninterrupted network performance even in the most demanding operational settings.

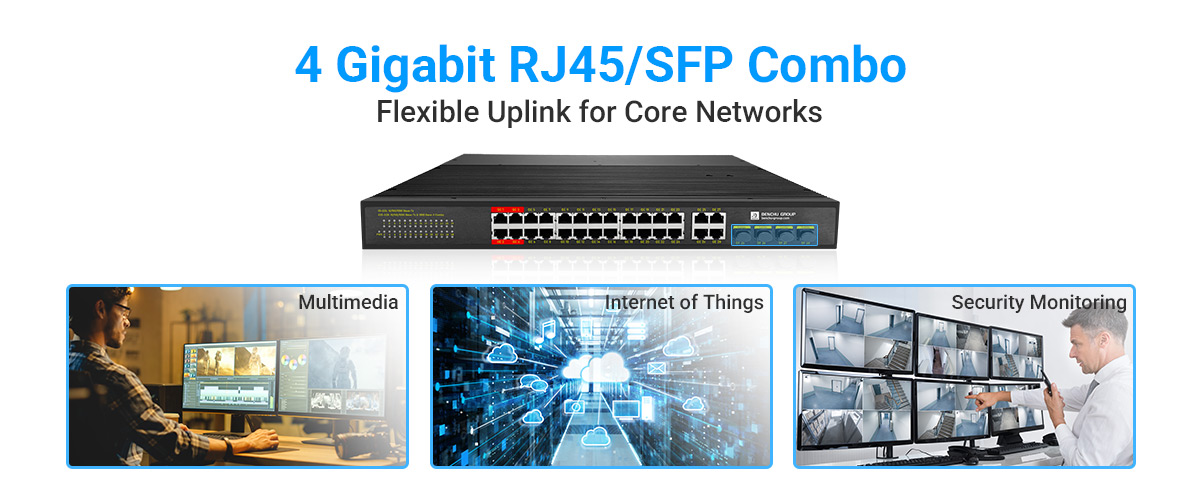

4 Gigabit RJ45/SFP Combo Uplink Ports
The inclusion of 4 Gigabit RJ45/SFP Combo Uplink ports provides flexibility for network expansion and high-speed data transfer. These uplinks allow seamless connections to fiber or copper cables, ensuring compatibility with a wide range of networking infrastructures. Whether scaling an existing network or connecting to core systems, these uplinks provide reliable data throughput, enabling bandwidth-intensive applications such as HD video streaming, IoT data aggregation, and critical surveillance systems.

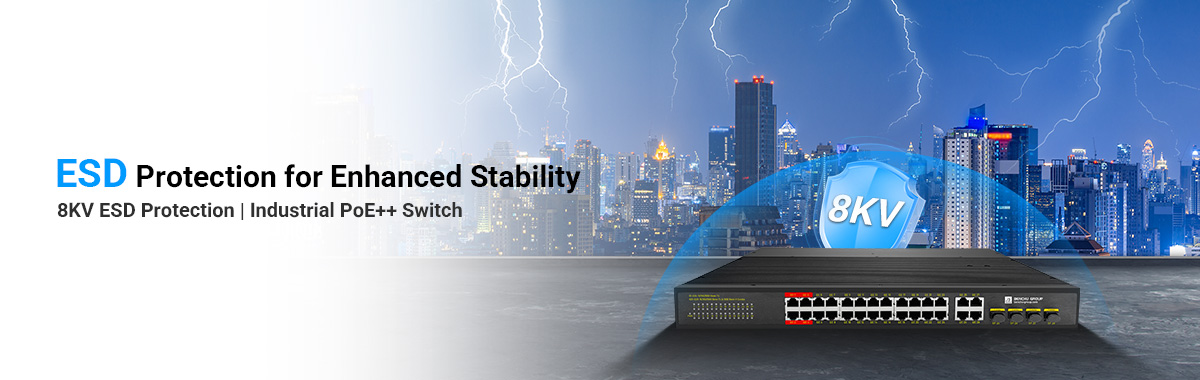

ESD Protection for Enhanced Stability
Featuring 8KV ESD (Electrostatic Discharge) protection, this 24 port industrial PoE++ switch safeguards connected devices and network equipment against sudden electrical surges. This ensures stable and uninterrupted operation, especially in environments prone to static discharge or power fluctuations. By protecting your investment from potential damage, the switch reduces maintenance costs and prolongs the lifespan of both the network infrastructure and connected devices, making it a reliable choice for industrial applications.
Comprehensive Power Management
This 24 port industrial PoE++ switch offers intelligent power management, ensuring optimal allocation of its 500W power budget. It prioritizes critical devices while preventing overloading, improving network efficiency and reliability. Users can monitor and control power usage via an intuitive interface, reducing energy consumption and operational costs. This feature makes it ideal for deployments with varied power demands, such as large-scale surveillance systems or smart city applications, where efficient power distribution is crucial.
Plug-and-Play Installation
Designed for ease of use, the IES7221-24PGE4GC-4BT-AC supports plug-and-play installation, eliminating the need for complex configurations. This simplifies deployment, even for non-technical users, saving time and reducing operational costs. Its auto-sensing PoE ports automatically detect connected devices' power requirements, ensuring compatibility and minimizing setup errors. This feature is particularly beneficial for fast-paced industrial projects requiring quick and reliable network deployment.
Connectivity Solutions
24 Port Gigabit Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Uplink Connectivity Solution
Specification
Especificaciones técnicas :
IES7221-24PGE4GC-4BT-ACPuertos de cobre RJ45 de 10M/100M/1G :
24Combinación Gigabit R4J5 y SFP :
4Puertos PoE/PoE+ :
20 (up to 30W per port)Puertos PoE / PoE+ / PoE++ / UPoE+ :
4 (up to 90W per port)Alimentación a través de Ethernet :
*Estándar PoE :
IEEE 802.3bt Power over Ethernet Plus Plus / PoE++； Backward compatible with IEEE 802.3af/at Power over EthernetTipo de fuente de alimentación PoE :
End-span: 1/2/4/5 (+), 3/6/78 (-)Salida de alimentación PoE :
Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) ； Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3bt)Especificación de rendimiento :
*Memoria intermedia de paquetes :
8.2 MbModos de reenvío :
Store-and-forwardBanda ancha :
128 GbpsTasa de reenvío de paquetes :
47.62Mpps (64 byte packet size)Tamaño de la base de datos de direcciones MAC :
8K (48-bit MAC ad-dresses)Soporte de marco gigante :
9KProtocolos de red IEEE :
*Protocolos :
• IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3bt PoE++ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex FlowSupervisión :
*LED :
YesPor puerto :
Speed, Link, Activity; PoE in different modePor dispositivo :
PowerEspecificaciones físicas :
*Dimensiones (Ancho * Fondo * Alto) :
440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)Peso :
<6.6 kg (11.55 lb)El consumo de energía :
500W (when all ports used, line-rate traffic and max PoE)máximo poder :
16W (worst case, all ports used, full PoE, line-rate traffic) (Watts)Consumo de energía inactivo :
10W (all ports link-down standby) (Watts)Ethernet energéticamente eficiente (EEE) :
Yes (deactivated by default)Admirador :
FanlessEspecificaciones ambientales :
*Temperatura de funcionamiento :
-30° to 75°C (-22° to 167°F)Humedad de funcionamiento :
95% maximum relative humidity (RH), non-condensingAltitud de funcionamiento :
10,000 ft (3,000 m) maximumTemperatura de almacenamiento :
-40° to 85°C (-40° to 185°F)Humedad de almacenamiento (relativa) :
95% maximum relative humidity, non-condensingAltitud de almacenamiento :
10,000 ft (3,000 m) maximumEstándar ejecutivo y protección :
*Protección contra rayos :
*IEC61000-4-3 (RS) :
10V/m (80~1000MHz)FCC Parte 15/CISPR22 (EN55022) :
Class BCEI 61000-6-2 :
Common Industrial StandardIEC61000-4-9 (campo magnético pulsado) :
1000A/mIEC61000-4-10 (oscilación amortiguada) :
30A/m, 1MHzIEC61000-4-12/18 (onda de choque) :
CM 2.5kV, DM 1kVIEC61000-4-4(EFT) :
Power cable:±4kV, Data cable: ±2kVIEC61000-4-16 (transmisión en modo común) :
30V, 300V, 1sIEC61000-4-2 (ESD) :
±8kV contact discharge, ±15kV air dischargeIEC61000-4-6 (transmisión por radiofrecuencia) :
10V(150kHz~80MHz)IEC61000-4-8 :
100A/m, 1000A/m, 1s-3sIEC61000-4-5 (sobretensión): cable de alimentación :
CM±4kV/ DM±2kV, Data cable: ±4kVPropiedades mecánicas :
*IEC60068-2-6 :
Anti VibrationIEC60068-2-32 :
Free FallIEC60068-2-27 :
Anti ShockEmisiones electromagnéticas e inmunidad :
*Certificaciones :
CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013Seguridad :
*Certificaciones de seguridad :
CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)Garantía y soporte :
*Garantía limitada de hardware :
Limited Lifetime*Soporte técnico por teléfono y correo electrónico* :
Limited Lifetime*Soporte técnico por chat en línea 24 horas al día, 7 días a la semana :
Limited Lifetime*contenidos del paquete :
*Todos los modelos :
Smart Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guideTipo de negocio :
Industrialbandido :
1GMás filtros :
Unmanaged
