Managed 16 Port Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink (IES7521-16PGE4GC-4BT-AC)

Managed 16 Port Industrial PoE++ Switch
16 Port Managed Industrial PoE++ Switch
16 Port PoE++ Managed Industrial Switch
Rack-mount 16 Port Managed Industrial PoE++ Switch

Managed 16 Port Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink (IES7521-16PGE4GC-4BT-AC)

Pregunte ahora

IES7521-16PGE4GC-4BT-AC is a 16-port gigabit PoE++ industrial switch with 500W power, Layer 2+ features, and durability for demanding environments.

Product Highlights
    • 4-10/100/1000Mbps RJ45 ports with PoE++ (Port 1-port 4)
    • 12-10/100/1000Mbps RJ45 ports with PoE+ (Port 5-port 16)
    • Complies with IEEE 802.3af/at/bt Power over Ethernet
    • Supports PoE power up to 90 watts for Port 1 to 4
    • Supports PoE power up to 30 watts for Port 5 to 16
    • ERPS(G.8032) STP/FSTP/MSTP for Ring network and Link protection
    • Layer 3 static routing (IPv4 and IPv6) for inter VLAN local routing
    • IGMP Snooping, IGMP Querier and IGMP Fast Leave for multicast optimization
    • Include VLANs, PoE scheduling, ACLs, DiffServ, LACP, MVR and DHCP
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • -30 to 75 degrees operating temperature
    • Rack mounting installation
    • Backplane bandwidth 128Gbps，Packet forwarding rate 35.723Mpps，MAC address 8k

Managed 16 Port gigabit Industrial PoE++ Switch authentication

Overview



IES7521-16PGE4GC-4BT-AC, 16 Port Gigabit Managed Industrial PoE++ Switch with 4 Gigabit RJ45/SFP Combo Uplink,4 PoE++ Port(90W) and 12 PoE+ Ports(30W)，500W power budget

BENCHU GROUP's IES7521-16PGE4GC-4BT-AC is a high-performance 16 port gigabit managed industrial PoE++ switch, expertly engineered for industrial-grade applications. It offers 4 Gigabit RJ45/SFP Combo Uplink ports for seamless data transmission and network scalability. Equipped with 4 PoE++ (90W) and 12 PoE+ (30W) ports, it provides a robust 500W power budget, powering high-demand devices such as PTZ cameras, high-performance wireless APs, and IoT devices.

This 16 port gigabit managed industrial PoE++ switch supports advanced Layer 2+ features, including Static Routing,  VLAN, QoS, IGMP Snooping, and Link Aggregation, allowing users to optimize network performance for mission-critical operations. Its intelligent management functions provide precise traffic control, enhanced security, and network segmentation for efficient data flow.

Built for durability, the switch operates in extreme temperatures from -30°C to 75°C and is equipped with 8KV ESD protection, ensuring reliable performance in harsh industrial conditions such as factories, mines, and transportation hubs.

The IES7521-16PGE4GC-4BT-AC brings exceptional value by offering a cost-effective, scalable solution for industrial networks. It simplifies power and data management, reduces installation complexity, and ensures robust performance for applications like smart city infrastructure, industrial automation, and surveillance systems. With advanced management capabilities and industrial-grade reliability, this switch delivers superior efficiency and long-term investment returns.



Physical Port

  • 4-Gigabit Ethernet RJ45 ports with PoE++
  • 12-Gigabit Ethernet RJ45 ports with PoE+
  • 4-Gigabit RJ45/SFP ports combo
  • 1-RJ45 console interface for switch management and setup
  • 1-Reset button for system factory default and reboot



Power over Ethernet

  • Complies with IEEE 802.3bt Power over Ethernet Plus
  • Backward compatible with IEEE 802.3at/af Power over Ethernet
  • Supports PoE power up to 90 watts for 4 PoE port（Port 1 to 4）
  • Supports PoE power up to 30 watts for 4 PoE port（Port 5 to 16）
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters



Switching

  • Backplane bandwidth 256Gbps，Packet forwarding rate 35.72Mpps，MAC address 8k
  • Hardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation



Hardware

  • High- strength Aluminum case
  • Rack mount design
  • 100~240V DC, redundant power with reverse polarity protection
  • Supports 8KV DC Ethernet ESD protection
  • -30 to 75 degrees C operating temperature
  • LED indicators for Power,PoE Working and LINK/ACT



Lightning Protection

  • IEC61000-4-3 (RS):10V/m (80~1000MHz)
  • FCC Part 15/CISPR22 (EN55022):Class B
  • IEC61000-6-2:Common Industrial Standard
  • IEC61000-4-9 (Pulsed magnet field) :1000A/m
  • IEC61000-4-10 (Damped oscillation) :30A/m, 1MHz
  • IEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kV
  • IEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kV
  • IEC61000-4-16(Common-mode transmission) :30V, 300V, 1s
  • IEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air discharge
  • IEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)
  • IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3s
  • IEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kV



Mechanical Properties

  • IEC60068-2-6:Anti Vibration
  • IEC60068-2-32:Free Fall
  • IEC60068-2-27:Anti Shock

Layer 2 Features

  • Support IEEE 802.1Q VLAN
  • Support MAC VLAN
  • Support Surveillance VLAN
  • Support Voice VLAN
  • Supports Spanning Tree Protocol
  • Supports Link Aggregation (LACP)
  • Supports port mirror
  • Supports Multicast Filtering (IGMP)
  • Supports DHCP
  • Supports ERPS
  • Supports RMON
  • Supports MLD snooping
  • Supports MVR
  • Supports Quality of Service (Qos)
  • Supports Static routing
  • Supports Port Error Disable
  • Supports Rate Limit
  • Supports Storm Control
  • Supports PoE Managed



Security

  • Support IEEE 802.1x
  • Support RADIUS accounting
  • Support Access Control Lists (ACLs)
  • Support MAC Security
  • Support IP Source Guard prevents IP spoofing attacks
  • Support DoS Attack Prevention
  • Support aaa authentication



Management

  • IPv4 and IPv6 dual stack management
  • Web switch management
  • Console/Telnet Command Line Interface
  • SNMP v1 and v2c switch management
  • SSHv2, TLSv1.2 and SNMP v3 secure access
  • Firmware upload/download via HTTP/TFTP
  • Configuration upload / download through Web interface
  • Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED





Features

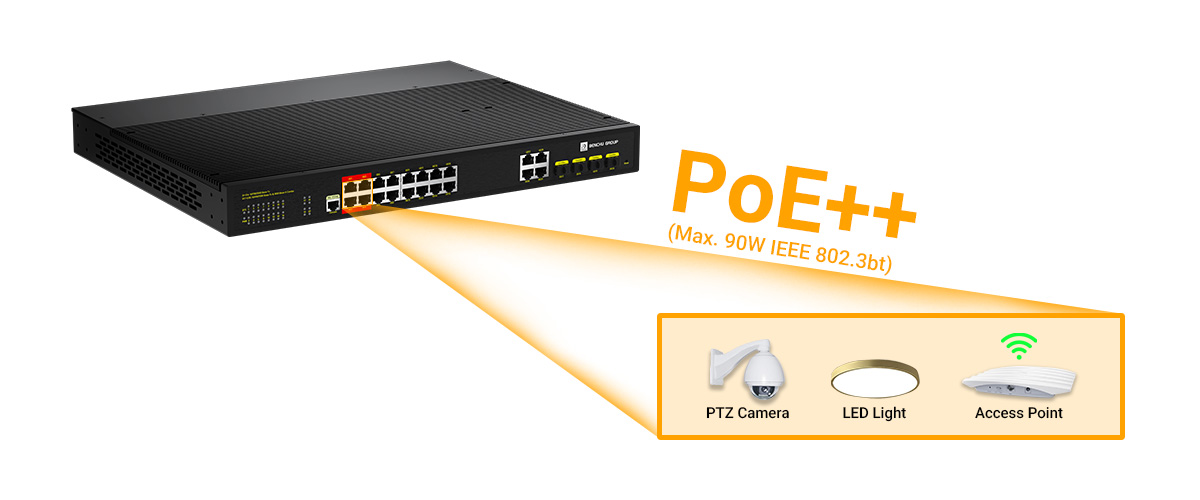

High Power PoE++ Support (90W)

This 16 port managed industrial PoE++ switch features 4 PoE++ (90W) ports, delivering ultra-high power suitable for demanding industrial applications such as PTZ cameras, wireless access points, and IoT devices. This capability ensures seamless operation of power-intensive devices while reducing the need for separate power infrastructure. The inclusion of PoE++ ensures flexibility and scalability for modern industrial networks, empowering businesses to build efficient and future-proof systems.



Comprehensive Power Budget of 500W

Equipped with a robust 500W power budget, the IES7521-16PGE4GC-4BT-AC supports simultaneous operation of 4 PoE++ and 12 PoE+ devices. This extensive capacity ensures reliable performance, even in power-demanding environments. The centralized power supply reduces cabling costs and simplifies deployment, making it ideal for industrial automation, smart cities, and advanced surveillance systems.

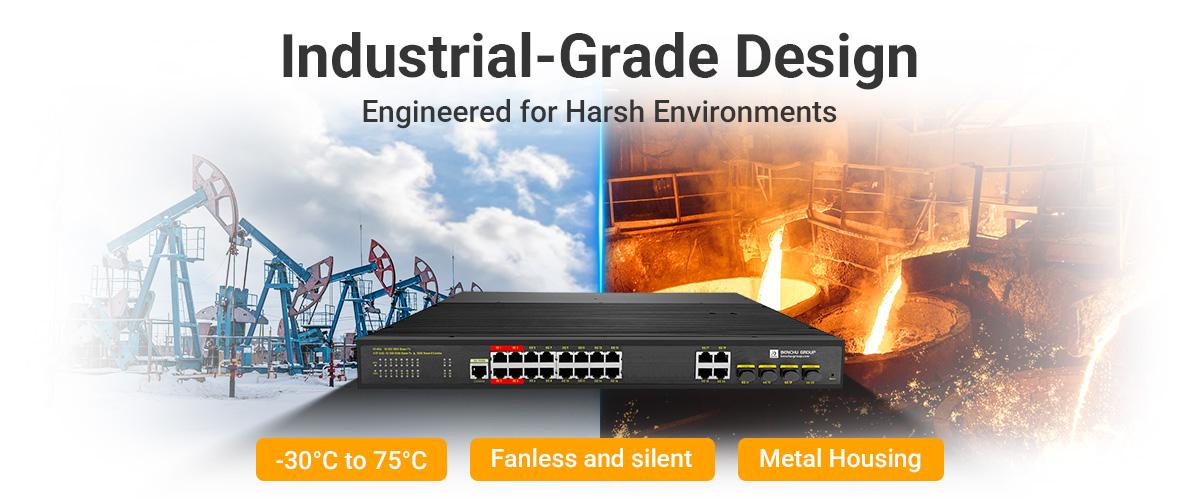

Industrial-Grade Design (-30°C to 75°C)

Engineered for harsh environments, the IES7521-16PGE4GC-4BT-AC operates reliably within a wide temperature range of -30°C to 75°C. Its rugged design ensures uninterrupted connectivity in extreme industrial settings, such as factories, outdoor installations, and oil and gas facilities. With this robust build, the switch guarantees long-lasting performance and resilience under challenging conditions.



ESD Protection (8KV)

The IES7521-16PGE4GC-4BT-AC incorporates advanced ESD (Electrostatic Discharge) protection of up to 8KV, safeguarding sensitive components from electrical surges. This feature enhances reliability and minimizes downtime, making it suitable for areas prone to static electricity or electrical noise. The strong ESD shielding ensures stable and secure operations, critical for mission-critical applications.



L2+ Managed Features

The advanced L2+ management capabilities include VLAN, QoS, IGMP Snooping, and Static Routing, optimizing network performance and traffic control. These features allow for enhanced network segmentation, better bandwidth utilization, and more efficient communication between devices. The industrial PoE++ switch’s intelligent management functionality empowers administrators to fine-tune and secure networks with ease.

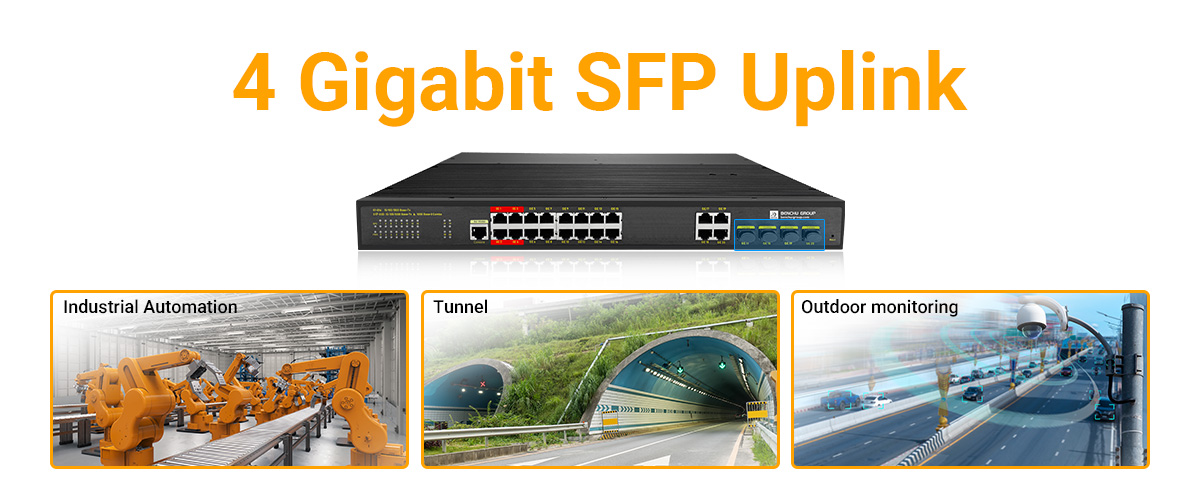

Gigabit Connectivity with 4 RJ45/SFP Combo Uplinks

This 16 port managed industrial PoE++ switch provides 4 Gigabit RJ45/SFP combo uplink ports, enabling flexible, high-speed network expansion. The combination of copper and fiber connectivity ensures compatibility with various devices and extends network reach. This feature offers adaptability and reliability for industrial deployments requiring seamless integration and superior performance.



16-Port Gigabit Managed Switch with Advanced Security

With 20 managed Gigabit ports, the switch ensures high-speed data transmission while supporting advanced security protocols like port security, ACLs, and SSH. This comprehensive management enhances network reliability and protects against unauthorized access. Designed for critical industrial operations, it ensures secure and uninterrupted data flow in sensitive environments.





Connectivity Solutions



16 port Gigabit Managed Industrial PoE++ switch with 4 Gigabit RJ45/SFP Uplink Connectivity Solution







Specification



  • Especificaciones técnicas :

    IE7521-16PGE4GC-4BT-AC

  • Puertos de cobre RJ45 de 10M/100M/1G :

    16

  • Combinación Gigabit R4J5 y SFP :

    4

  • Puertos PoE/PoE+ :

    12 (Up to 30W per port)

  • Puertos PoE / PoE+ / PoE++ / UPoE+ :

    4 (Up to 90W per port)

  • Puerto de consola (para configuración) :

    Yes

  • Botón de reinicio :

    Yes

  • Alimentación a través de Ethernet :

    *

  • Estándar PoE :

    IEEE 802.3bt Power over Ethernet Plus Plus /PSE；Backward compatible IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Tipo de fuente de alimentación PoE :

    End-span: 1/2/4/5 (+), 3/6/7/8 (-)

  • Salida de alimentación PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at) Per port 52V DC, 1800mA. max. 90 watts (IEEE 802.3at)

  • Presupuesto de energía PoE :

    470W

  • Especificación de rendimiento :

    *

  • Memoria intermedia de paquetes :

    8.2 Mb

  • Modos de reenvío :

    Store-and-forward

  • Banda ancha :

    256 Gbps

  • Tasa de reenvío de paquetes :

    35.72Mpps (64 byte packet size)

  • Tamaño de la base de datos de direcciones MAC :

    8K (48-bit MAC ad-dresses)

  • Soporte de marco gigante :

    9K

  • Servicios L2: VLAN :

    *

  • Etiquetado VLAN IEEE 802.1Q :

    Yes

  • Etiquetado VLAN QinQ :

    Yes

  • VLAN basadas en IP :

    Yes

  • VLAN basadas en MAC :

    Yes

  • VLAN basada en protocolo :

    Yes

  • VLAN de voz :

    Yes

  • mapeo de VLAN :

    Yes

  • Servicios L2 - Disponibilidad :

    *

  • control de tormentas :

    Yes （Broadcast, multicast, unknown unicast）

  • IEEE 802.3ad - LAG (LACP) :

    Yes

  • IEEE 802.3x :

    Yes

  • Anillo (ERPS,cumple con G.8032) :

    Yes, Recovery time < 50ms

  • Protocolo de árbol de expansión IEEE 802.1D :

    Yes

  • Protocolo de árbol de expansión rápida IEEE 802.1w :

    Yes

  • Protocolo de árbol de expansión múltiple IEEE 802.1s :

    Yes

  • Retransmisión DHCP de capa 2 :

    Yes

  • Servicios L2: filtrado de multidifusión :

    Yes

  • Espionaje IGMP (v1, v2 y v3) :

    Yes

  • Soporte de espionaje MLD (v1 y v2) :

    Yes

  • Consulta de espionaje IGMP (v2) :

    Yes

  • Consultador de espionaje MLD (v1) :

    Yes

  • Registro de VLAN de multidifusión (MVR) :

    Yes

  • Servicios L3 - Enrutamiento :

    *

  • Enrutamiento estático IPv4 :

    100

  • Enrutamiento estático IPv6 :

    100

  • Agregar un link :

    *

  • RETRASO manual :

    Yes

  • # de GAL / # de miembros en cada GAL :

    8 LAGs with max 8 members in each LAG

  • Servicios de monitoreo y descubrimiento de redes :

    *

  • 802.1ab LLDP :

    Yes

  • SNMP :

    v1, v2c, v3

  • RMON grupo 1,2,3,9 :

    Yes

  • Seguridad de la red :

    Yes

  • IEEE 802.1x :

    Yes

  • contabilidad RADIO :

    Yes

  • Listas de control de acceso (ACL) :

    Yes

  • ACL basadas en IP (IPv4 e IPv6) :

    L2 / L3 / L4

  • ACL basadas en MAC :

    Yes

  • ACL basadas en TCP/UDP :

    Yes

  • Controlar las entradas estáticas de MAC # :

    48

  • Seguridad basada en puertos mediante direcciones MAC bloqueadas :

    Yes

  • Inspección ARP dinámica :

    Yes

  • Protección DoS :

    Yes

  • Prevención de ataques DoS :

    Yes

  • Protección contra tormentas de red, DoS :

    Yes

  • Calidad de servicio (QoS) :

    *

  • Limitación de tarifas basada en puertos :

    Yes ingress and egress

  • QoS basada en puerto :

    Yes

  • Soporte para campos IPv6 :

    Yes

  • QoS de servicio diferencial :

    Yes ingress

  • IEEE 802.1p COS :

    Yes

  • MAC e IP de destino :

    Yes

  • DSCP IPv4 y v6 :

    Yes

  • Basado en TCP/UDP :

    Yes

  • Round Robin ponderado (WRR) :

    Yes

  • Tecnología de cola de prioridad estricta :

    Yes

  • Protocolos de red IEEE :

    *

  • Protocolos :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

  • Protocolos 2 :

    • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning T

  • Gestión, seguimiento y resolución de problemas :

    *

  • Gestión de contraseñas :

    Yes

  • Control de acceso vía RADIUS y TACACS+ :

    Yes

  • Gestión de IPv6 :

    Yes

  • SNMP v1/v2c/v3 :

    Yes

  • Duplicación de puertos :

    Yes ingress and egress

  • Duplicación de puertos muchos a uno :

    6

  • Utilidad de prueba de cables :

    Yes

  • Acceso basado en web TLS/HTTPS (versión) :

    Yes (v1.2)

  • Transferencias de archivos (cargas, descargas) :

    TFTP / HTTP

  • Carga/descarga HTTP (firmware) :

    Yes

  • Registro del sistema (RFC 3164) :

    Yes

  • LED :

    Yes

  • Por puerto :

    Speed, Link, Activity; PoE in different mode

  • Por dispositivo :

    Power

  • Especificaciones físicas :

    *

  • Dimensiones (Ancho * Fondo * Alto) :

    440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)

  • Peso :

    <6.6 kg (11.55 lb)

  • El consumo de energía :

    500W (when all ports used, line-rate traffic and max PoE)

  • máximo poder :

    18W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Consumo de energía inactivo :

    11W (all ports link-down standby) (Watts)

  • Ethernet energéticamente eficiente (EEE) :

    Yes (deactivated by default)

  • Admirador :

    Fanless

  • Especificaciones ambientales :

    *

  • Temperatura de funcionamiento :

    -40° to 85°C (-40° to 185°F)

  • Humedad de funcionamiento :

    95% maximum relative humidity (RH), non-condensing

  • Altitud de funcionamiento :

    10,000 ft (3,000 m) maximum

  • Temperatura de almacenamiento :

    -40° to 85°C (-40° to 185°F)

  • Humedad de almacenamiento (relativa) :

    95% maximum relative humidity, non-condensing

  • Altitud de almacenamiento :

    10,000 ft (3,000 m) maximum

  • Estándar ejecutivo y protección :

    *

  • Protección contra rayos :

    *

  • IEC61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Parte 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (campo magnético pulsado) :

    1000A/m

  • IEC61000-4-10 (oscilación amortiguada) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onda de choque) :

    CM 2.5kV, DM 1kV

  • IEC61000-4-4(EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmisión en modo común) :

    30V, 300V, 1s

  • IEC61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmisión por radiofrecuencia) :

    10V(150kHz~80MHz)

  • IEC61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (sobretensión): cable de alimentación :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propiedades mecánicas :

    *

  • IEC60068-2-6 :

    Anti Vibration

  • IEC60068-2-32 :

    Free Fall

  • IEC60068-2-27 :

    Anti Shock

  • Emisiones electromagnéticas e inmunidad :

    *

  • Certificaciones :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Seguridad :

    *

  • Certificaciones de seguridad :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantía y soporte :

    *

  • Garantía limitada de hardware :

    Limited Lifetime*

  • Soporte técnico por teléfono y correo electrónico* :

    Limited Lifetime*

  • Soporte técnico por chat en línea 24 horas al día, 7 días a la semana :

    Limited Lifetime*

  • contenidos del paquete :

    *

  • Todos los modelos :

    Smart Industrial Switch ； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Tipo de negocio :

    Industrial

  • bandido :

    1G

  • Más filtros :

    L2+ Managed
ETIQUETAS CALIENTES : Managed 16 Port Industrial PoE++ Switch 16 Port Managed Industrial PoE++ Switch 16 Port PoE++ Managed Industrial Switch
dejar un mensaje
Si está interesado en nuestros productos y desea conocer más detalles, deje un mensaje aquí, le responderemos lo antes posible.
entregar

dejar un mensaje

dejar un mensaje
Si está interesado en nuestros productos y desea conocer más detalles, deje un mensaje aquí, le responderemos lo antes posible.
entregar

Hogar

Productos

Whatsapp

Contáctenos
