Managed 24 Port Gigabit Industrial PoE Switch,with 8-1Gb SFP combo,with 4-10Gb SFP+ Uplink，IES7521-24PGE8GEC4TF-AC

Pregunte ahora

Designed for IP Camera / Wireless Access Point / industrial automation / IOT

Product Highlights
    • 24 ports 10/100/1000M RJ45 supporting PoE+ to PD device
    • 8 Ports 1.25G SFP to access switch
    • 4 Ports 1G/2.5G/10G SFP+ to core network
    • ERPS(G.8032) STP/FSTP/MSTP for Ring network and Link protection
    • Support Layer 3 static routing RIP/OSPF/VRRP (IPv4 and IPv6)
    • IGMP Snooping, IGMP Querier and IGMP Fast Leave for multicast optimization
    • Include VLANs, PoE scheduling, ACLs, DiffServ, LACP, MVR and DHCP
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • DC for Ethernet ESD protection
    • -40 to 85 degrees operating temperature
    • IP40 Industrial design with redundant power input
    • Din Rail mounting installation
    • Backplane bandwidth 128Gbps，Packet forwarding rate 95Mpps，MAC address 16k

24 port gigabit Industrial PoE Switch

Overview



IES7521-24PGE8GFC4TF-AC, Layer 3 Managed 24 Ports Gigabit Industrial PoE+ Switch,with 8-1.25G SFP Combo, with 4-10Gb SFP+ Uplink,24 PoE+ Ports,500W Power Budget

BENCHU GROUP's 24-port industrial PoE switch IES7521-24PGE8GFC4TF-AC is designed to meet the demanding needs of modern networking environments, offering exceptional performance, reliability, and versatility. This switch features 24 Gigabit PoE ports, 8 1Gb SFP slots, and 4 10Gb SFP+ uplink ports, providing high-speed connectivity and robust scalability for critical applications.

With 10Gb uplink capabilities, it ensures lightning-fast data transmission, reducing latency and optimizing bandwidth for high-density networks. This is especially valuable for applications such as IP surveillance, industrial automation, and wireless backhaul systems. The PoE functionality simplifies installations by powering devices like IP cameras, wireless access points, and VoIP phones directly through the network cables, eliminating the need for separate power supplies.

Designed for rugged environments, the IES7521-24PGE8GFC4TF-AC operates reliably under extreme temperatures and harsh conditions, making it ideal for industrial and outdoor deployments. It supports advanced Layer 3 network features, enhancing security, traffic management, and network efficiency.




Physical Port

  • 24-10/100/1000BASE-TX Fast Ethernet RJ45 ports with PoE+
  • 8-1.25GBASE-X mini-GBIC/SFP+ slot combo
  • 4-1G/2.5G/10GBASE-X mini-GBIC/SFP+ slot
  • 1-RJ45 console interface for switch management and setup
  • 1-Reset button for system factory default and reboot
  • 1-USB interface for switch setup



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Remote power feeding up to 100 meters
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m in standard mode
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE Port Power feeding priority
  • Per PoE port power limitation
  • PoE Timed startup and shutdown
  • PD classification detection
  • Intelligent PoE features
  • PD alive check
  • PoE schedule
  • PoE extension



Switching

  • Backplane bandwidth 256Gbps，Packet forwarding rate 84Mpps，MAC address 16k
  • Hardware-based 10/100/1000Mbps (half/full duplex) auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation



Hardware

  • Industrial Case and Installation
  • High- strength Aluminum case
  • Rack mount design
  • 100~260V DC, redundant power with reverse polarity protection
  • Supports 8KV DC Ethernet ESD protection
  • -40 to 85 degrees C operating temperature
  • LED indicators for Power,PoE Working and LINK/ACT



Lightning Protection

  • IEC61000-4-3 (RS):10V/m (80~1000MHz)
  • FCC Part 15/CISPR22 (EN55022):Class B
  • IEC61000-6-2:Common Industrial Standard
  • IEC61000-4-9 (Pulsed magnet field) :1000A/m
  • IEC61000-4-10 (Damped oscillation) :30A/m, 1MHz
  • IEC61000-4-12/18 (Shockwave) :CM 2.5kV, DM 1kV
  • IEC61000-4-4(EFT):Power cable:±4kV, Data cable: ±2kV
  • IEC61000-4-16(Common-mode transmission) :30V, 300V, 1s
  • IEC61000-4-2 (ESD):±8kV contact discharge, ±15kV air discharge
  • IEC61000-4-6 (Radio frequency transmission) :10V(150kHz~80MHz)
  • IEC61000-4-8 (Power frequency magnetic field) :100A/m, 1000A/m, 1s-3s
  • IEC61000-4-5 (Surge) Power cable:CM±4kV/ DM±2kV, Data cable: ±4kV



Mechanical Properties

  • IEC60068-2-6:Anti Vibration
  • IEC60068-2-32:Free Fall
  • IEC60068-2-27:Anti Shock

Layer 3 Features

  • Support Static routing
  • Support RIP
  • Support OSPF
  • Support VRRP



Layer 2 Features

  • Support IEEE 802.1Q VLAN
  • Support MAC VLAN
  • Support Surveillance VLAN
  • Support Voice VLAN
  • Support QinQ VLAN
  • Supports Spanning Tree Protocol
  • Supports Link Aggregation (LACP)
  • Supports port mirror
  • Supports Multicast Filtering (IGMP)
  • Supports DHCP
  • Supports ERPS
  • Supports RMON
  • Supports MLD snooping
  • Supports MVR
  • Supports UDLD
  • Supports Quality of Service (Qos)
  • Supports Static routing
  • Supports Port Error Disable
  • Supports Rate Limit
  • Supports Storm Control
  • Supports PoE Managed



Security

  • Support IEEE 802.1x
  • Support RADIUS accounting
  • Support Access Control Lists (ACLs)
  • Support MAC Security
  • Support IP Source Guard prevents IP spoofing attacks
  • Support DoS Attack Prevention
  • Support aaa authentication





Management

  • IPv4 and IPv6 dual stack management
  • Web switch management
  • Console/Telnet Command Line Interface
  • SNMP v1 and v2c switch management
  • SSHv2, TLSv1.2 and SNMP v3 secure access
  • Firmware upload/download via HTTP/TFTP
  • Configuration upload / download through Web interface
  • Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED





Features

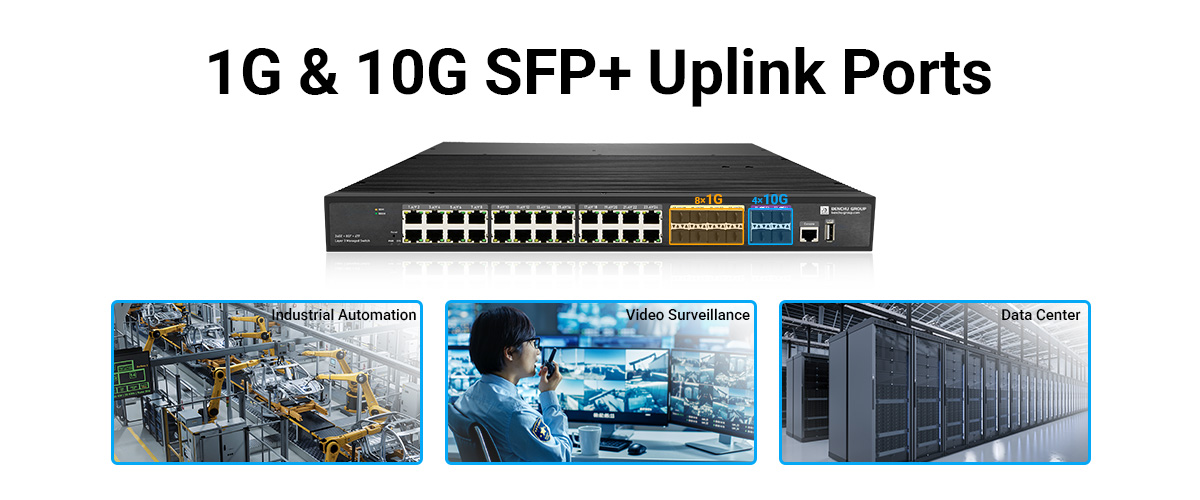

1G SFP and 10G SFP+ Uplink Ports

With 8 1G SFP and 4 10G SFP+ uplinks, the 24 port PoE industrial switch provides versatile connectivity options for extended networks. The 1G SFP ports are ideal for medium-distance links, while the 10G SFP+ uplinks ensure ultra-fast data transmission over long distances. This combination supports bandwidth-intensive applications, ensuring seamless performance in industrial automation, video surveillance, and data centers.



Advanced Layer 3 Management

This 24 port PoE industrial switch offers advanced Layer 3 features, including VLAN, QoS, IGMP Snooping, and Link Aggregation,RIP,OSPF,VRRP. These functions enable precise traffic control, optimize network performance, and enhance security. Administrators can configure and monitor the network efficiently through a user-friendly web interface, CLI, or SNMP, ensuring maximum reliability for mission-critical applications.

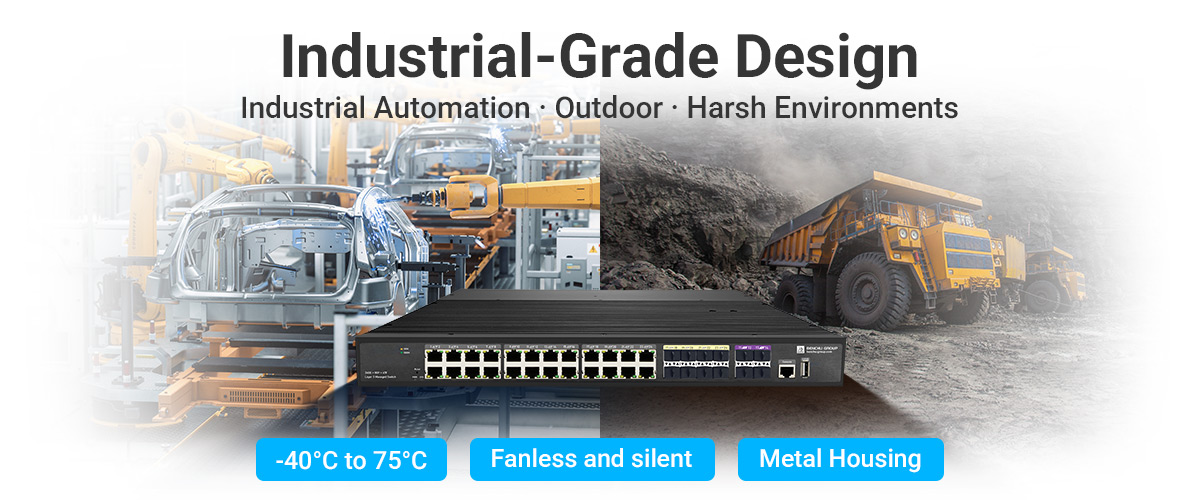

Industrial-Grade Design

Built for rugged environments, this 24 port poe industrial switch operates reliably in extreme conditions, with a wide operating temperature range of -40°C to 75°C. Its fanless design ensures silent operation, and the robust metal housing provides excellent durability. These features make it suitable for industrial automation, outdoor deployments, and harsh environments, ensuring consistent performance under demanding conditions.



Enhanced Network Security

The IES7521-24PGE8GFC4TF-AC includes advanced security features like port security, DHCP snooping, and ACLs to prevent unauthorized access and protect data integrity. These safeguards mitigate cyber threats and ensure secure communication across the network. Its comprehensive security suite is ideal for applications requiring high levels of data protection, such as financial systems or government networks.



High Bandwidth and Low Latency

The integration of 10G uplink ports ensures high-speed data transfer and reduced latency, crucial for applications like 4K video streaming, IoT, and industrial control systems. Its non-blocking architecture ensures all ports operate at full capacity simultaneously, supporting data-intensive workflows and ensuring smooth operation in high-traffic environments.



Easy Installation and Integration

With plug-and-play PoE capability and flexible SFP uplink options, the switch is easy to deploy and integrates seamlessly into existing networks.  The intuitive management interface and smart features reduce setup time, allowing businesses to focus on scaling their operations with minimal effort.





Connectivity Solutions



Layer 3 Managed 24 Port PoE Industrial Switch with 8-1G SFP and 4-10G SFP+ Uplink Connection Solution











Specification



  • Especificaciones técnicas :

    IE7521-24PGE8GFC4TF-AC

  • Puertos de cobre RJ45 de 10M/100M/1G :

    16

  • Combinación Gigabit R4J5 y SFP :

    8 RJ45/SFP Combo

  • Puertos 1G/2,5G/10G SFP+ (fibra) :

    4

  • Puertos PoE/PoE+ :

    24

  • Puerto de consola (para configuración) :

    Yes

  • Puerto USB :

    Yes (for firmware and config upload/ download)

  • Botón de reinicio :

    Yes

  • Alimentación a través de Ethernet :

    *

  • Estándar PoE :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Tipo de fuente de alimentación PoE :

    End-span: 1/2 (+), 3/6 (-)

  • Salida de alimentación PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Especificación de rendimiento :

    *

  • Memoria intermedia de paquetes :

    12 Mb

  • Modos de reenvío :

    Store-and-forward

  • Banda ancha :

    256 Gbps

  • Tasa de reenvío de paquetes :

    118Mpps

  • Tamaño de la base de datos de direcciones MAC :

    16K

  • Soporte de marco gigante :

    12K

  • Servicios L2: VLAN :

    *

  • Etiquetado VLAN IEEE 802.1Q :

    Yes

  • Etiquetado VLAN QinQ :

    Yes

  • VLAN basadas en IP :

    Yes

  • VLAN basadas en MAC :

    Yes

  • VLAN basada en protocolo :

    Yes

  • VLAN de voz :

    Yes

  • mapeo de VLAN :

    Yes

  • Servicios L2 - Disponibilidad :

    *

  • control de tormentas :

    Yes （Broadcast, multicast, unknown unicast）

  • IEEE 802.3ad - LAG (LACP) :

    Yes

  • IEEE 802.3x :

    Yes

  • Anillo (ERPS,cumple con G.8032) :

    Yes, Recovery time < 50ms

  • Protocolo de árbol de expansión IEEE 802.1D :

    Yes

  • Protocolo de árbol de expansión rápida IEEE 802.1w :

    Yes

  • Protocolo de árbol de expansión múltiple IEEE 802.1s :

    Yes

  • Retransmisión DHCP de capa 2 :

    Yes

  • Servicios L2: filtrado de multidifusión :

    Yes

  • Espionaje IGMP (v1, v2 y v3) :

    Yes

  • Soporte de espionaje MLD (v1 y v2) :

    Yes

  • Consulta de espionaje IGMP (v2) :

    Yes

  • Consultador de espionaje MLD (v1) :

    Yes

  • Registro de VLAN de multidifusión (MVR) :

    Yes

  • Servicios L3 - DHCP :

    *

  • cliente DHCP :

    Yes

  • Espionaje DHCP :

    Yes

  • servidor DHCP :

    Yes

  • Servicios L3 - Enrutamiento :

    *

  • Enrutamiento estático IPv4 :

    100

  • Enrutamiento estático IPv6 :

    100

  • enrutamiento VLAN :

    Yes

  • RIP V1/V2 :

    Yes

  • OSPFV2 :

    Yes

  • Número de interfaces IP VLAN :

    Yes

  • Enrutamiento de políticas :

    Yes

  • VRRP :

    Yes

  • Agregar un link :

    *

  • RETRASO manual :

    Yes

  • # de GAL / # de miembros en cada GAL :

    8 LAGs with max 8 members in each LAG

  • Servicios de monitoreo y descubrimiento de redes :

    *

  • 802.1ab LLDP :

    Yes

  • SNMP :

    v1, v2c, v3

  • RMON grupo 1,2,3,9 :

    Yes

  • Seguridad de la red :

    Yes

  • IEEE 802.1x :

    Yes

  • contabilidad RADIO :

    Yes

  • Listas de control de acceso (ACL) :

    Yes

  • ACL basadas en IP (IPv4 e IPv6) :

    L2 / L3 / L4

  • ACL basadas en MAC :

    Yes

  • ACL basadas en TCP/UDP :

    Yes

  • Controlar las entradas estáticas de MAC # :

    48

  • Seguridad basada en puertos mediante direcciones MAC bloqueadas :

    Yes

  • Inspección ARP dinámica :

    Yes

  • Protección DoS :

    Yes

  • Prevención de ataques DoS :

    Yes

  • Protección contra tormentas de red, DoS :

    Yes

  • Calidad de servicio (QoS) :

    *

  • Limitación de tarifas basada en puertos :

    Yes ingress and egress

  • QoS basada en puerto :

    Yes

  • Soporte para campos IPv6 :

    Yes

  • QoS de servicio diferencial :

    Yes ingress

  • IEEE 802.1p COS :

    Yes

  • MAC e IP de destino :

    Yes

  • DSCP IPv4 y v6 :

    Yes

  • Basado en TCP/UDP :

    Yes

  • Round Robin ponderado (WRR) :

    Yes

  • Tecnología de cola de prioridad estricta :

    Yes

  • Protocolos de red IEEE :

    *

  • Protocolos :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3ad Trunking (LACP) • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX

  • Protocolos 2 :

    • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.1Q VLAN Tagging • IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) • IEEE 802.1p Class of Service • IEEE 802.1D Spanning Tree (STP) • IEEE 802.1s Multiple Spanning Tree (MSTP) • IEEE 802.1w Rapid Spanning T

  • Gestión, seguimiento y resolución de problemas :

    *

  • Gestión de contraseñas :

    Yes

  • Control de acceso vía RADIUS y TACACS+ :

    Yes

  • Gestión de IPv6 :

    Yes

  • SNMP v1/v2c/v3 :

    Yes

  • Duplicación de puertos :

    Yes ingress and egress

  • Duplicación de puertos muchos a uno :

    28

  • Utilidad de prueba de cables :

    Yes

  • Acceso basado en web TLS/HTTPS (versión) :

    Yes (v1.2)

  • Transferencias de archivos (cargas, descargas) :

    TFTP / HTTP

  • Carga/descarga HTTP (firmware) :

    Yes

  • Registro del sistema (RFC 3164) :

    Yes

  • LED :

    Yes

  • Por puerto :

    Speed, Link, Activity; PoE in different mode

  • Por dispositivo :

    Power

  • Especificaciones físicas :

    *

  • Dimensiones (Ancho * Fondo * Alto) :

    440 x 290 x 46 mm (17.32 x 11.32 x 1.81 in)

  • Peso :

    <6.6 kg (11.55 lb)

  • El consumo de energía :

    500W (when all ports used, line-rate traffic and max PoE)

  • máximo poder :

    24W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Consumo de energía inactivo :

    12W (all ports link-down standby) (Watts)

  • Ethernet energéticamente eficiente (EEE) :

    Yes (deactivated by default)

  • Admirador :

    Fanless

  • Especificaciones ambientales :

    *

  • Temperatura de funcionamiento :

    -40° to 85°C (-40° to 185°F)

  • Humedad de funcionamiento :

    95% maximum relative humidity (RH), non-condensing

  • Altitud de funcionamiento :

    10,000 ft (3,000 m) maximum

  • Temperatura de almacenamiento :

    -40° to 85°C (-40° to 185°F)

  • Humedad de almacenamiento (relativa) :

    95% maximum relative humidity, non-condensing

  • Altitud de almacenamiento :

    10,000 ft (3,000 m) maximum

  • Estándar ejecutivo y protección :

    *

  • Protección contra rayos :

    *

  • IEC61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Parte 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (campo magnético pulsado) :

    1000A/m

  • IEC61000-4-10 (oscilación amortiguada) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onda de choque) :

    CM 2.5kV, DM 1kV

  • IEC61000-4-4(EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmisión en modo común) :

    30V, 300V, 1s

  • IEC61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmisión por radiofrecuencia) :

    10V(150kHz~80MHz)

  • IEC61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (sobretensión): cable de alimentación :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propiedades mecánicas :

    *

  • IEC60068-2-6 :

    Anti Vibration

  • IEC60068-2-32 :

    Free Fall

  • IEC60068-2-27 :

    Anti Shock

  • Emisiones electromagnéticas e inmunidad :

    *

  • Certificaciones :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Seguridad :

    *

  • Certificaciones de seguridad :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantía y soporte :

    *

  • Garantía limitada de hardware :

    Limited Lifetime*

  • Soporte técnico por teléfono y correo electrónico* :

    Limited Lifetime*

  • Soporte técnico por chat en línea 24 horas al día, 7 días a la semana :

    Limited Lifetime*

  • contenidos del paquete :

    *

  • Todos los modelos :

    Smart Industrial Switch ； Brackets and screws for DIN-Rail mounting, which are already installed in the switch； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Tipo de negocio :

    Industrial

  • bandido :

    1G+10G

  • Más filtros :

    L3 Managed
ETIQUETAS CALIENTES : Managed 24 port Industrial PoE Switch Layer 3 Managed Industrial PoE Switch 24 port industrial Switch Industrial PoE Switch
dejar un mensaje
Si está interesado en nuestros productos y desea conocer más detalles, deje un mensaje aquí, le responderemos lo antes posible.
entregar

dejar un mensaje

dejar un mensaje
Si está interesado en nuestros productos y desea conocer más detalles, deje un mensaje aquí, le responderemos lo antes posible.
entregar

Hogar

Productos

Whatsapp

Contáctenos
