Power over Fiber Splitter (PoF) - Industrial Optical Receiver with SC Hybrid Connector, DC 12V & Gigabit RJ45 PoE Dual Output Terminal

Power over Fiber Splitter (PoF) - Industrial Optical Receiver with SC Hybrid Connector, DC 12V & Gigabit RJ45 PoE Dual Output Terminal - Benchu Group
Power over Fiber Splitter (PoF) - Industrial Optical Receiver with SC Hybrid Connector, DC 12V & Gigabit RJ45 PoE Dual Output Terminal - Benchu Group
Power over Fiber Splitter (PoF) - Industrial Optical Receiver with SC Hybrid Connector, DC 12V & Gigabit RJ45 PoE Dual Output Terminal - Benchu Group
Power over Fiber Splitter (PoF) - Industrial Optical Receiver with SC Hybrid Connector, DC 12V & Gigabit RJ45 PoE Dual Output Terminal - Benchu Group

Power over Fiber Splitter (PoF) - Industrial Optical Receiver with SC Hybrid Connector, DC 12V & Gigabit RJ45 PoE Dual Output Terminal

Pregunte ahora

Product Highlights

    Power over Fiber Receiver: Decouples 500m incoming hybrid fiber cable lines into reliable electrical power and gigabit data.

    Flexible Dual powering Modes: Delivers both standard DC 12V output and standard RJ45 Gigabit PoE power simultaneously.

    SC Quick Hybrid Connector: Features a rugged one-step snap connector to ensure fast, error-free field infrastructure deployment.

    15W Net Power Budget: Accounts for real-world line loss to provide steady 15W continuous net delivery for cameras.

    IP40 Aluminum Wall-Mount Enclosure: Heavy-duty compact casing allows easy screw installation directly inside crowded outdoor equipment boxes.

    -40°C to 75°C Industrial Grade: Fanless passively cooled design thrives under extreme arctic freezing or blistering solar enclosure heat.

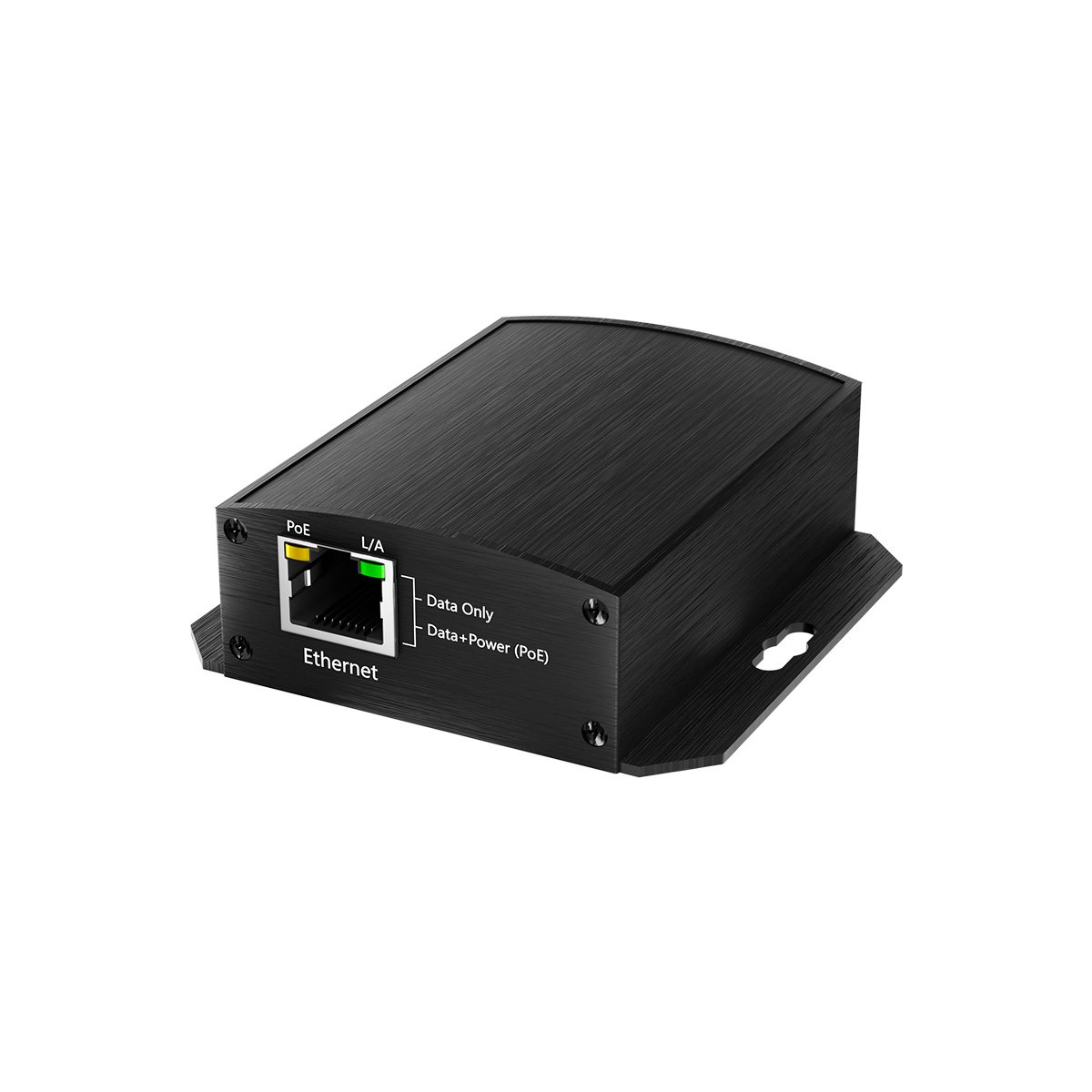

Power over Fiber Splitter (PoF Splitter) | Industrial Remote Optical Receiver | PoF-SPL-1GP12V

Rugged IP40 Aluminum Wall-Mount Terminal with SC Quick Hybrid Connectivity

Smart Optical-Electrical Decoupling: One-Step SC Quick Hybrid Integration at the Edge

An industrial Power over Fiber Splitter (PoF Splitter) is a compact remote optical receiver engineered to decouple gigabit network data and stable DC electricity from hybrid powered fiber infrastructures up to 500 meters away. Featuring an innovative SC Quick Hybrid Connector , field technicians can achieve error-free, one-step data and electrical terminal linkups. Housed in a heavy-duty IP40 rugged aluminum alloy wall-mount enclosure, it is optimized to fit tightly inside compact outdoor equipment boxes under environments ranging from -40°C to 75°C. Factoring in 500m copper line loss and internal conversion dissipation, this optical power receiver provides a reliable 15W net continuous power delivery budget, supporting a universal dual-mode output of both standard DC 12V and Gigabit RJ45 PoE (IEEE 802.3af/at backward adaptive)** to power remote enterprise wireless APs and HD IP surveillance cameras seamlessly.

Target Endpoint Application Scenarios

This dual-mode wall-mount PoF receiver endpoint is the ideal choice for quick field deployments inside outdoor traffic enclosures and harsh park network nodes:

Outdoor Equipment Box CCTV

Fits perfectly inside rugged outdoor electronics enclosures on roadside traffic poles or park grids. Uses wall-mount tabs to anchor securely, converting the incoming SC hybrid cable link into a 15W PoE stream to power standard HD IP fixed or dome cameras.

Campus Wireless AP Deployments

Deploys on wide-area campus corridor walls or ceilings. Technicians utilize the quick hybrid snap connector for fast linkups, using either the Gigabit PoE line or the dedicated DC 12V barrel output to hook up enterprise wireless Access Points without edge power grid drops.

Hardened Factory Floor Telemetry

The fanless aluminum shell survives harsh factory temperatures from -40°C to 75°C. Pure glass optical fiber data transmission provides 100% signal galvanic isolation, completely sealing off ground loop errors and heavy-machinery cross-EMI spikes.

Key Product Features & Capabilities

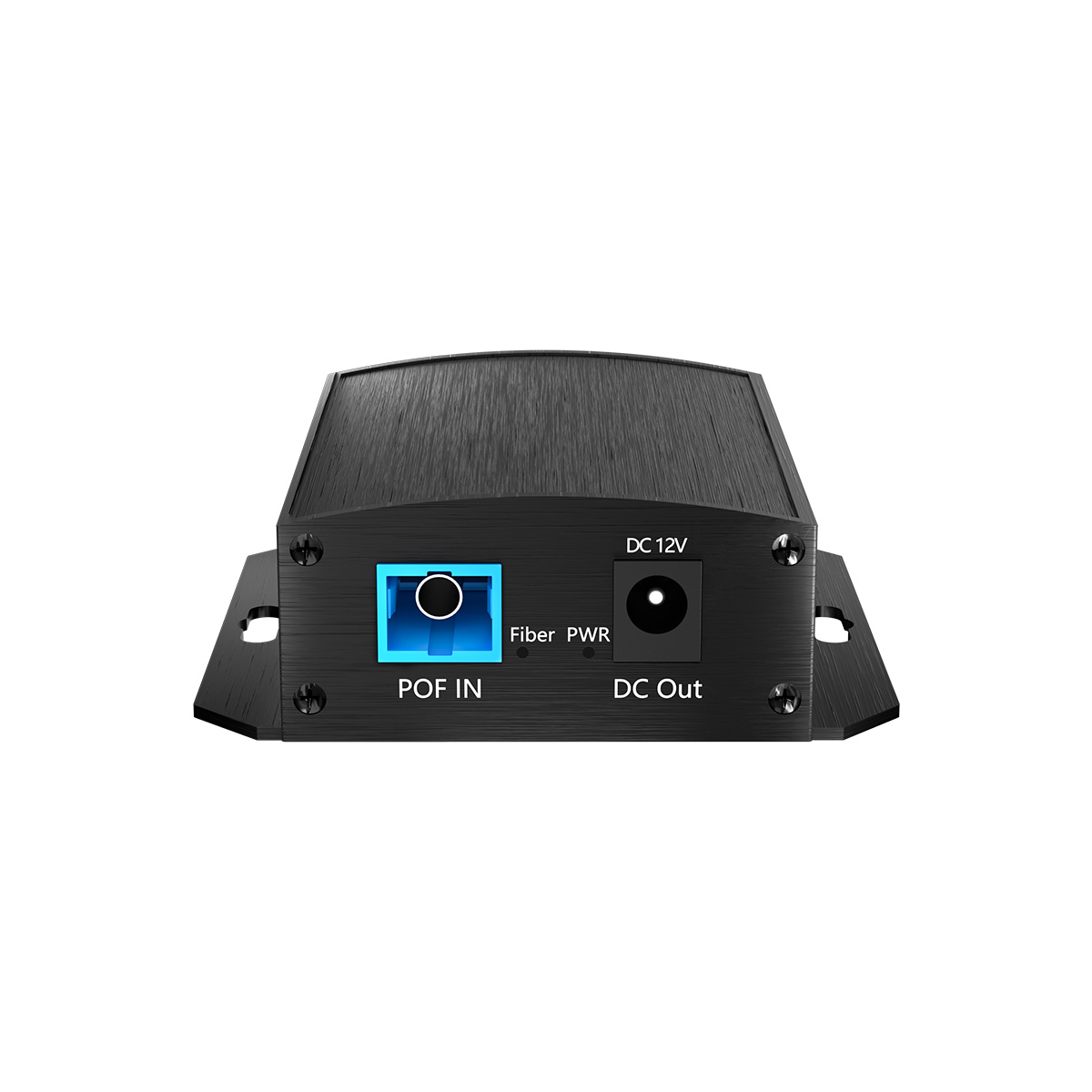

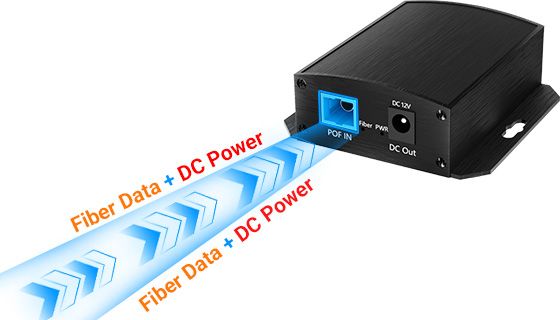

SC Quick Hybrid Connector PoF Splitter

SC Quick Hybrid Connection

Features an advanced one-step snap hybrid interface to lock fiber data and DC power lines in one click without complex onsite splicing.

15W Net Power Budget PoF Receiver

15W Real Net Power

Factoring in 500m copper line loss, the endpoint provides a steady 15W continuous net power delivery budget to drive field cameras flawlessly.

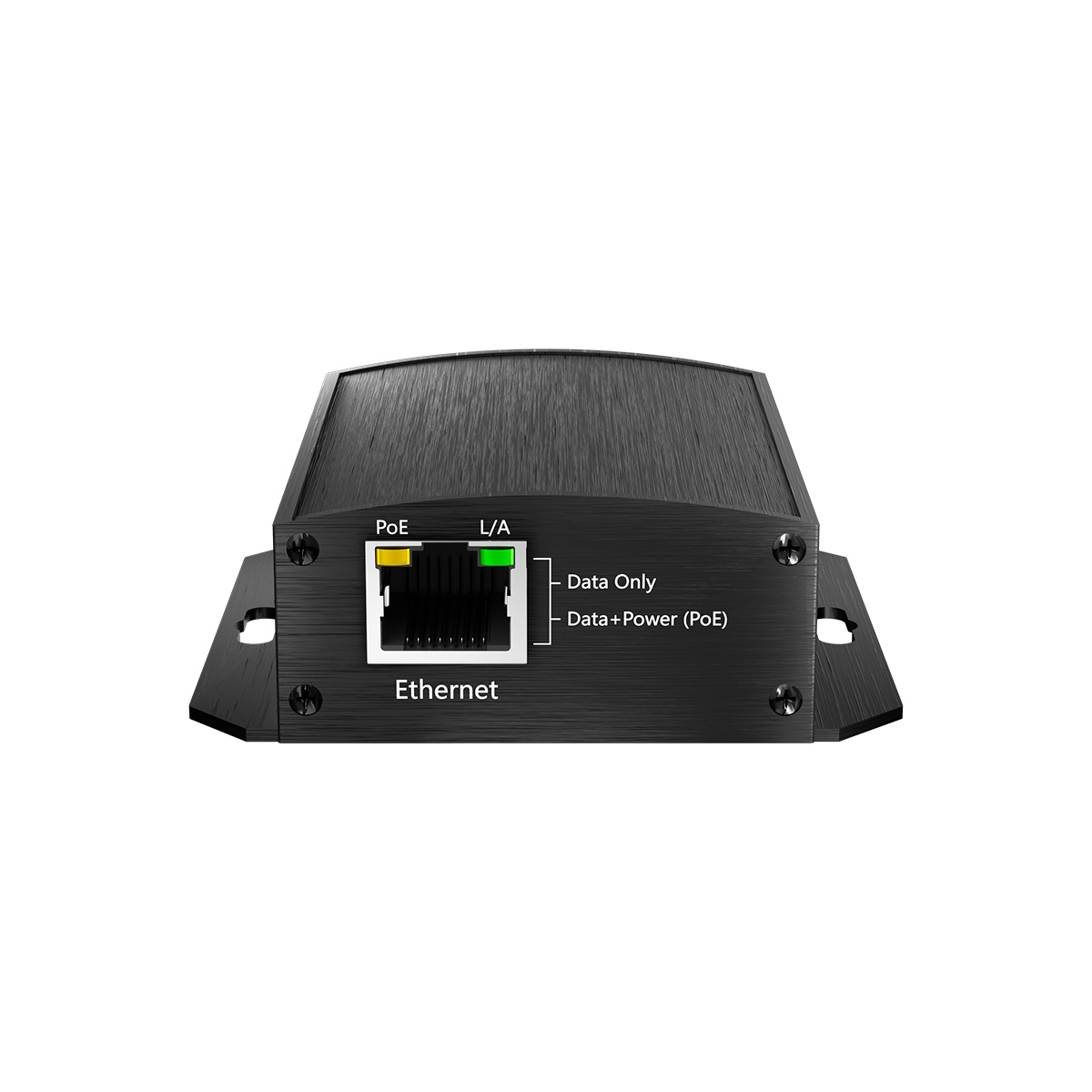

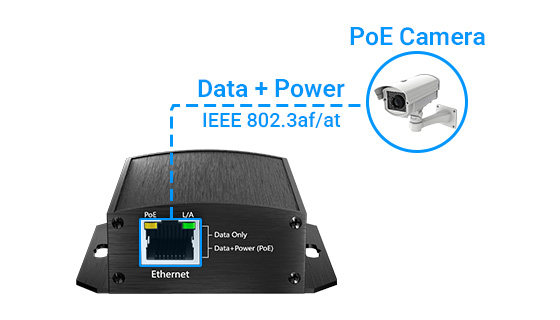

Gigabit RJ45 PoE Output PoF Splitter

Gigabit RJ45 PoE Out

Decouples incoming streams to output standard IEEE 802.3af/at standard PoE via a Gigabit RJ45 port for seamless modern AP and IP camera connection.

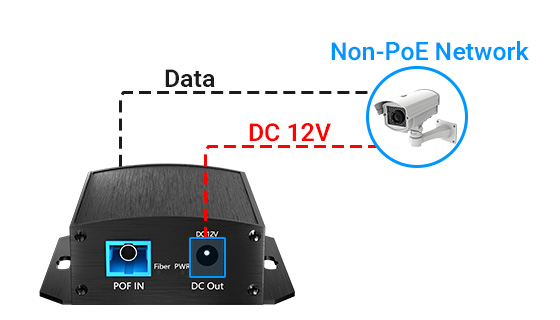

Common DC 12V Barrel Jack

Common DC Barrel Jack

Equipped with a standard circular DC 12V port to power non-PoE network legacy terminals, sensors, and hardware directly at the edge.

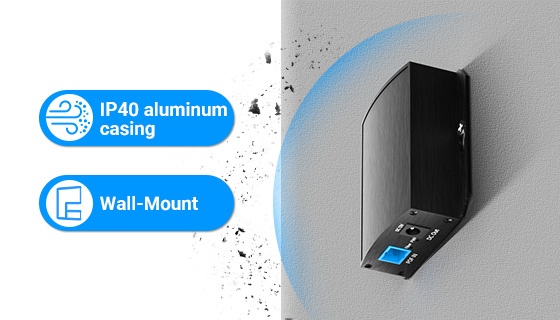

IP40 Aluminum Wall Mount Enclosure

Wall-Mount Aluminum Shell

Rugged, heavy-duty IP40 aluminum casing with integrated wall-mount tabs allows solid screw locking inside crowded outdoor boxes.

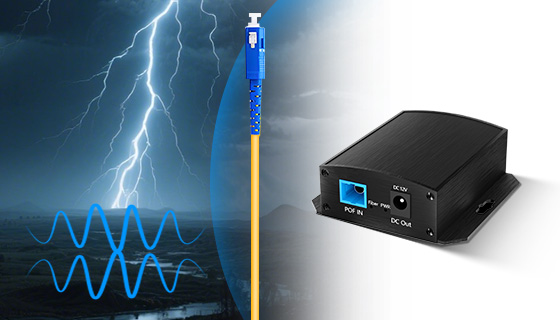

100 Percent Data Channel Isolation Ground Loop Free

Data Channel Isolation

Utilizes non-conductive optical pathways to isolate network data signals, breaking ground loops and preventing transient outdoor lightning propagation.

Extreme Temperature Hardened Outdoor Equipment Box Case

-40°C to 75°C Hardened

Engineered with premium industrial components. Fanless casing acts as a heatsink to counter extreme arctic freezes or intense outdoor box heat spikes.

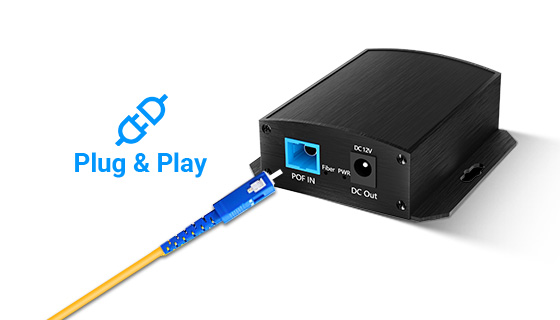

Plug and Play Zero Configuration Field Deployment

Zero-Config Plug & Play

Pure hardware-level media conversion. Requires zero software setup or training, dramatically slashing field labor deployment bills.

PoF Edge Connectivity Solutions



Flexible dual-mode power delivery and media conversion at the 500-meter remote network edge.

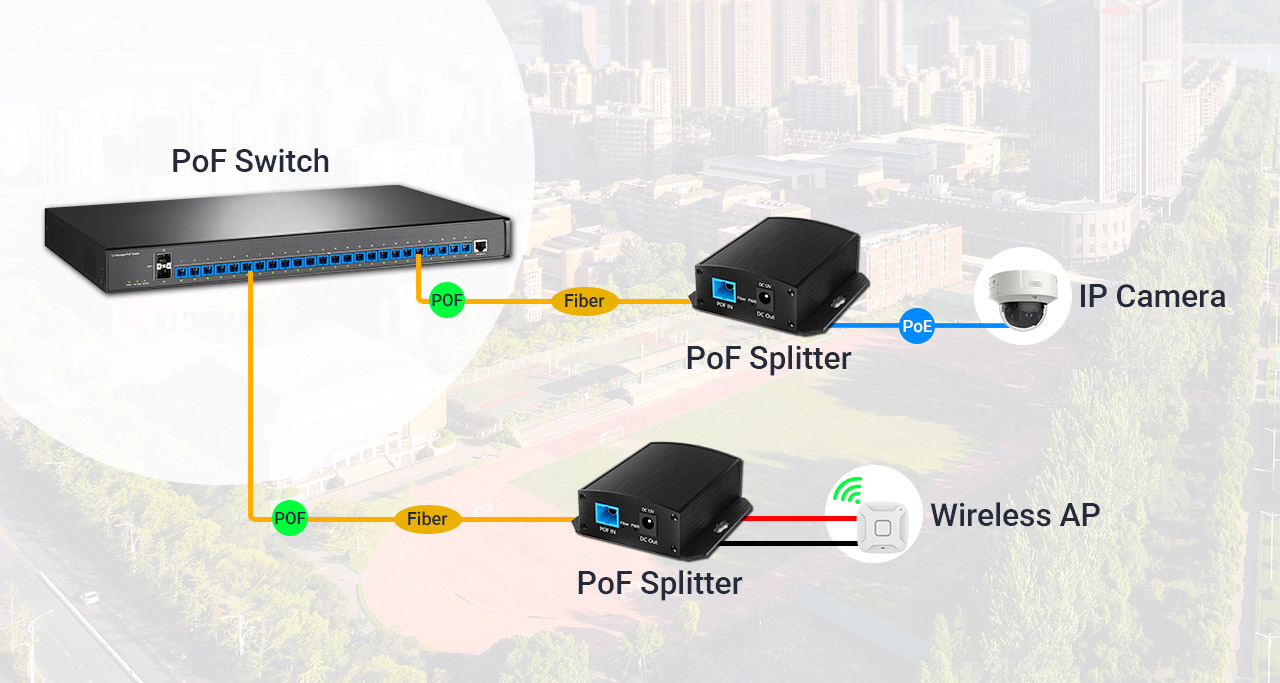

Industrial Power over Fiber PoF Splitter Remote Connection Topology Network Diagram

One-Step Edge Decoupling Architecture

  • 1. One-Click Hybrid Input Termination Snap the incoming 500-meter powered composite fiber optic cable straight into the built-in SC Quick Hybrid Connector slot. This instant physical linkage safely secures both the non-blocking gigabit optical data stream and the incoming low-voltage DC power current in a single click without onsite fusion splicing.
  • 2. Standard Gigabit RJ45 PoE Deployment Route a standard Ethernet copper patch cord out from the splitter's Gigabit RJ45 port. Factoring in line loss, the receiver provides a stable 15W net power budget, directly delivering standard IEEE 802.3af PoE to drive enterprise wireless APs or fixed IP security cameras with zero local grid wiring.
  • 3. Circular DC 12V Legacy Porting For older or industrial non-PoE field hardware, connect a standard DC power patch cord directly into the common circular DC 12V barrel jack. This universal layout safely channels steady low-voltage electricity directly into automated industrial telemetry sensors, network controllers, or field legacy terminals.

Specification

Technical Specifications Details / Parameters
Product Model PoF-SPL-1G12V
Product Type Industrial Power over Fiber Splitter (Remote Endpoint Receiver)
PoF Input Interface 1 x SC Quick Hybrid Connector Port (One-Step Optical & DC Lock)
Data Output Interface 1 x 10/100/1000Base-T Gigabit RJ45 Port (Non-blocking media conversion)
PoE Power Output Mode Standard IEEE 802.3af / IEEE 802.3at Adaptive PoE Output via RJ45
DC Power Output Mode 1 x Common Circular DC 12V Barrel Jack (For non-PoE field legacy devices)
Net Power Budget Max. 15W Continuous Net Output (Calculated with 500m line loss & chip conversion dissipation)
Data Channel Isolation 100% Galvanic Isolation via Non-Conductive Fiber Core; Eliminates Ground Loop Errors
Switch Configuration Unmanaged Hardware Level Conversion; Pure Plug-and-Play (Zero setup required)
Enclosure & Protection Rugged Fanless Metal Housing; IP40 Protection Grade; Compact Form Factor
Installation Mount Heavy-Duty Wall-Mount (Optimized size for tight outdoor equipment boxes)
Operating Temperature -40°C to +75°C (-40°F to 167°F) (Industrial Grade); Storage: -40°C to 85°C

Frequently Asked Questions (FAQ)


Q1: Why is the net power budget 15W, and what types of devices can this gigabit PoF splitter run?▼
While the central transmitter switch injects 30W per line, long-distance copper resistance over 500m causes line loss and voltage drops, alongside internal chip power dissipation. The resulting 15W continuous net budget is perfectly optimized to power standard standard IEEE 802.3af fixed IP cameras, dome surveillance hardware, and modern enterprise wireless APs seamlessly.
Q2: Can I use the RJ45 PoE port and the DC 12V barrel jack to power two separate devices simultaneously?▼
No, it is highly recommended to use only one power output mode at a time. The dual-mode architecture is designed for universal terminal hardware compatibility, not concurrent powering. Splitting the 15W net budget across two active devices simultaneously may trigger an undervoltage protection trip.
Q3: How does the SC Quick Hybrid Connector simplify field deployment inside equipment boxes?▼
Traditional powered fiber systems require engineers to separately splice optical fiber glass and screw down thick electrical copper terminals on site. Our integrated SC Quick Hybrid snap slot locks both data fiber strands and low-voltage DC power pins in one single click, entirely removing field connection errors.
Q4: How does this PoF splitter safeguard outdoor remote network endpoints against severe lightning strikes?▼
The device isolates the network communication stream by routing all gigabit data through the non-conductive glass fiber cores of the hybrid cable. This achieves 100% data channel galvanic isolation, successfully breaking dangerous ground loops and preventing catastrophic outdoor outdoor lightning spikes from spreading back into your central office IT machine room.
Q5: Will the device overheat when mounted inside a compact, unventilated outdoor electronics box case?▼
No, it is specifically optimized for tight, enclosed spaces. Built with a rugged, fanless heavy-duty aluminum casing, it effortlessly channels operational heat away from the internal circuit board. Combined with industrial-grade components rated for -40°C to 75°C, it handles severe temperature spikes within outdoor field equipment enclosures flawlessly.

Resource Download Center



Get the complete technical documents and dimension drawings for your project planning.


PDF



Product Datasheet (PDF)

Includes remote endpoint hardware specifications, dual-mode power pinning layout, wall-mount mechanical dimensions, and compliance certifications.

📥 Download Datasheet

Complete PoF Network Ecosystem



This remote edge receiver must connect to our central transmitter switch to establish a functional, intrinsically safe all-optical network.

Central Office Transmitter
24-Port Gigabit Layer 3 Managed Power over Fiber Switch

POF7500-24PGF2TF-L3M

24-Port Gigabit Layer 3 Managed PoF Switch

The central infrastructure hub. Manages advanced hardware routing protocols and consolidates a massive 500W aggregate optical power budget to drive up to 24 remote edge splitters across 500 meters over unified hybrid fiber optic cables.

Current Device
PoF-SPL-1G12V Power over Fiber Splitter

PoF-SPL-1G12V

Remote Industrial Power over Fiber Splitter

The field-end receiver endpoint. Decouples the incoming SC hybrid connector stream back into a Gigabit RJ45 PoE line and a steady circular DC 12V barrel jack to power Wi-Fi APs and surveillance cameras directly at the edge.

Edge Dual-Mode Powering Receiver Node
Verified Shenzhen Factory

Your Premier OEM/ODM Partner for Power over Fiber Hardware

As an established industrial fiber optic hardware manufacturer in Shenzhen, China, we specialize in supplying cutting-edge Power over Fiber (PoF) splitters, central office transmitter switches, and rugged optical transceivers. We offer robust B2B engineering support, wholesale factory pricing, and highly dynamic manufacturing capacities to system integrators and telecom distributors worldwide.

Tailored PoF Splitter Manufacturing Solutions

✔ Private Label & Corporate Logo Branding
✔ Bespoke Enclosure Sizes & Mount Tabs
✔ DC Output Voltage Customization (12V)
✔ Specific Hybrid Fiber Port Adaptations
✔ Engineering Regulatory Testing Services
✔ Custom Project Packaging & Kitting

How to Start Your Project?

Whether you require standard endpoint receiver nodes or comprehensive OEM/ODM structural alterations for wide-area grids, our engineers are ready to evaluate your layout.

📝
Submit Your RFQ Below Please scroll down to the built-in form at the bottom of this webpage to submit your target quantity, enclosure constraints, or interface requirements.
📨
Direct Engineering Contact Send your terminal device power parameters or roadside equipment enclosure drawings directly to our sales office mailbox for quick feedback. sales@benchu-group.com

⚡ Factory Guarantee: Response Within 24 Hours

Scroll Down to Contact Us ↓
