A Time-Sensitive Networking (TSN) switch supports IEEE 802.1 mechanisms for synchronized time and predictable Ethernet traffic delivery. In industrial automation, TSN can help coordinate PLCs, servo drives, robots, remote I/O, and machine-vision systems when the switches, endpoints, and network configuration support the required functions.
Industrial machines often need several devices to exchange data at the right time, not simply as fast as possible. A PLC may send a motion command, servo drives may need to act in coordination, remote I/O may report sensor states, and cameras may deliver inspection data at the same time. If important packets are delayed by other traffic, devices can receive control data later than the application expects.
On a conventional Ethernet network, packets are forwarded according to the switch's configured forwarding and priority rules. When multiple traffic streams compete for an outgoing port, a time-critical packet may have to wait behind traffic already being transmitted. Priority settings can help, but they do not by themselves provide a synchronized schedule or guarantee that every critical packet will meet a defined deadline.
Time-Sensitive Networking (TSN) is a set of IEEE 802.1 standards that adds tools for coordinating time and managing traffic on Ethernet networks. Depending on which functions are implemented and configured, TSN can help industrial systems share one network while giving time-sensitive traffic more predictable delivery behavior.
Time synchronization mechanisms, such as IEEE 802.1AS, help compatible devices align their clocks. This matters when controllers, drives, sensors, or cameras must coordinate actions or measurements against a common timeline.
With supported scheduling features, such as IEEE 802.1Qbv, configured traffic classes can use planned transmission windows. Properly engineered schedules help reduce interference from less time-critical traffic during reserved windows.
Control messages, diagnostics, monitoring data, and other Ethernet traffic may share the same infrastructure instead of requiring fully separate networks, provided bandwidth, traffic policies, endpoints, and TSN functions are designed for the workload.
In practical terms: TSN is worth evaluating when an application needs coordinated timing or more predictable delivery for critical Ethernet traffic, especially when that traffic must coexist with other data. It is not automatically necessary for every industrial network; ordinary Ethernet may be sufficient for applications without strict timing requirements.
Buying a TSN-capable switch alone does not make an entire network deterministic. The required standards must be supported by the relevant switches and endpoints, and the network must be configured and validated for its traffic load, topology, timing targets, and failure conditions. TSN does not automatically guarantee zero packet loss, a fixed end-to-end latency, or compatibility with every industrial protocol.
TSN comprises multiple IEEE 802.1 standards. Each addresses a different network function, so switch selection should be based on the mechanisms required by the application.
| Standard | Function | Industrial relevance |
|---|---|---|
| IEEE 802.1AS | Time synchronization. | Provides a shared time reference for coordinated communication among compatible devices. |
| IEEE 802.1Qbv | Time-aware scheduled traffic. | Uses configured transmission windows to help protect time-critical traffic. |
| IEEE 802.1Qbu | Frame preemption. | Can reduce blocking of express traffic by eligible lower-priority frames when the required functions are supported. |
| IEEE 802.1Qch | Cyclic queuing and forwarding. | Coordinates forwarding in cycles to support predictable latency in appropriately engineered networks. |
| IEEE 802.1CB | Frame replication and elimination for reliability. | Can improve resilience by transmitting redundant frame copies over configured paths and eliminating duplicates. |
These standards are not interchangeable. Confirm the exact implemented features in the switch datasheet and verify support across the complete network.
For most industrial deployments, start by evaluating these two common layouts. The right choice depends on device placement, cabling, availability targets, and the supported redundancy design.

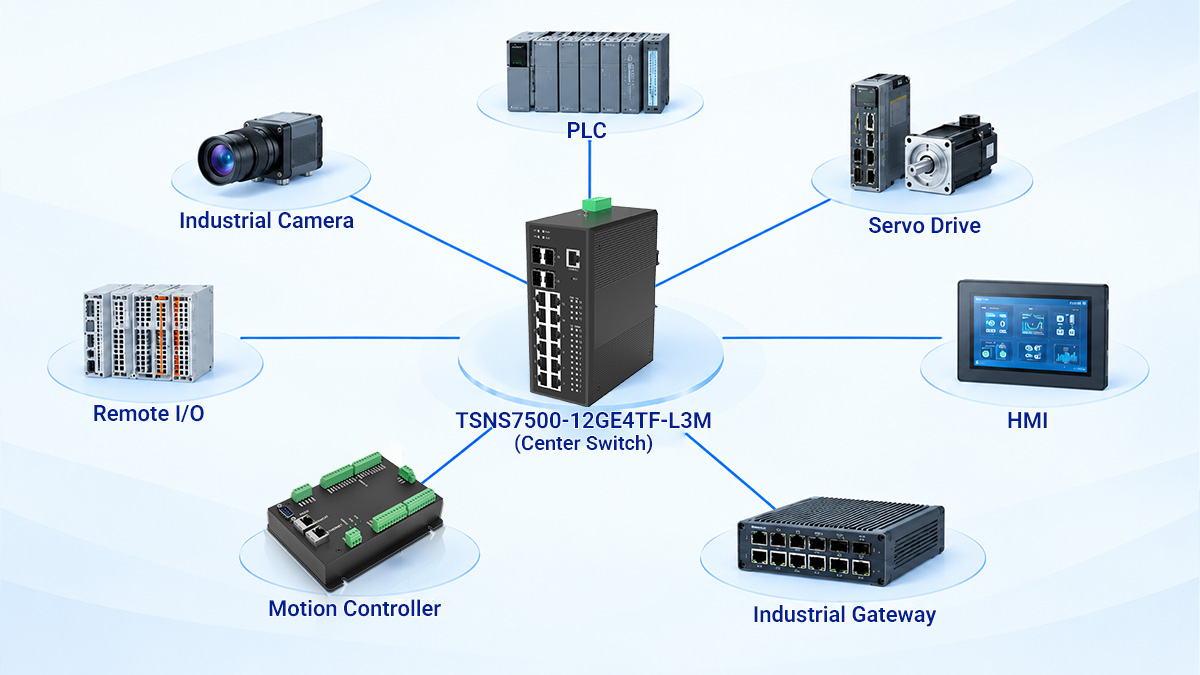

Each endpoint connects to a central switch. This layout is easy to expand and troubleshoot, making it suitable for machine cells and compact automation networks.

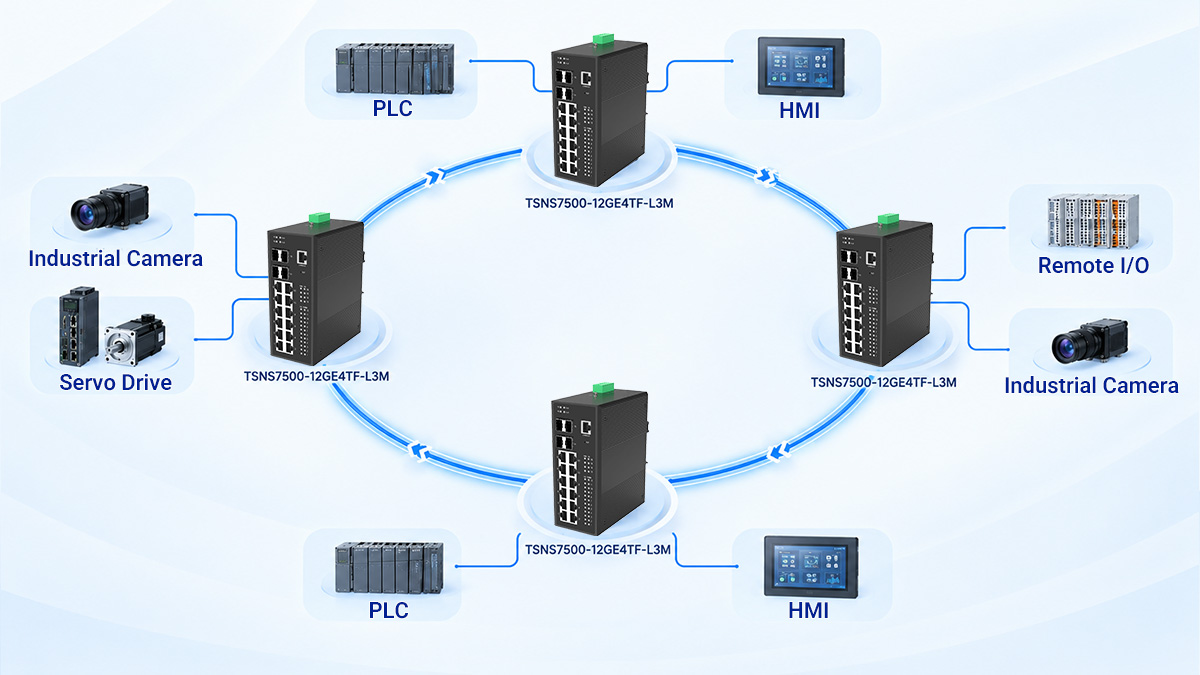

A ring provides an alternate path around the network. With a compatible redundancy mechanism, traffic may continue after a link failure, depending on the design and recovery behavior.
TSN is useful where industrial devices need synchronized timing or predictable Ethernet delivery. The required features depend on the control cycle, traffic profile, and TSN support across connected devices.
PLCs, servo drives, and remote I/O exchange control data within defined cycles. Time synchronization and scheduled traffic can coordinate communication when the complete network is configured for the required timing.
Robotic workcells combine controllers, robot arms, sensors, drives, and distributed I/O. TSN can coordinate time-sensitive exchanges between supported devices while other traffic shares the infrastructure.
Operational data, diagnostics, and condition-monitoring traffic may share a network with control communications. TSN mechanisms can help manage time-sensitive flows alongside less time-critical data.
Industrial cameras, image-processing systems, PLCs, and motion equipment may need coordinated image acquisition and data delivery. High-resolution image streams still require sufficient link capacity.
Substation systems, rail infrastructure, and other industrial installations may combine monitoring, control, and time-sensitive data. TSN suitability depends on the required timing, system architecture, and applicable sector standards.
Use these seven checks to compare switch capabilities with your project's timing, bandwidth, reliability, and integration requirements.
Confirm which standards, such as 802.1AS or 802.1Qbv, the application requires and the switch actually supports.
Check synchronization support and timing performance against the needs of your controllers and endpoints.
Match Gigabit access ports and uplink capacity to endpoint counts, traffic loads, and backbone requirements.
Review TSN configuration, QoS, VLAN, routing, monitoring, and other management features needed by the project.
Check redundancy protocols, alternate paths, and recovery behavior against the system's availability requirements.
Verify temperature range, power input, surge protection, enclosure, and mounting options for the installation site.
Validate interoperability with controllers, drives, software, industrial protocols, and existing network infrastructure.

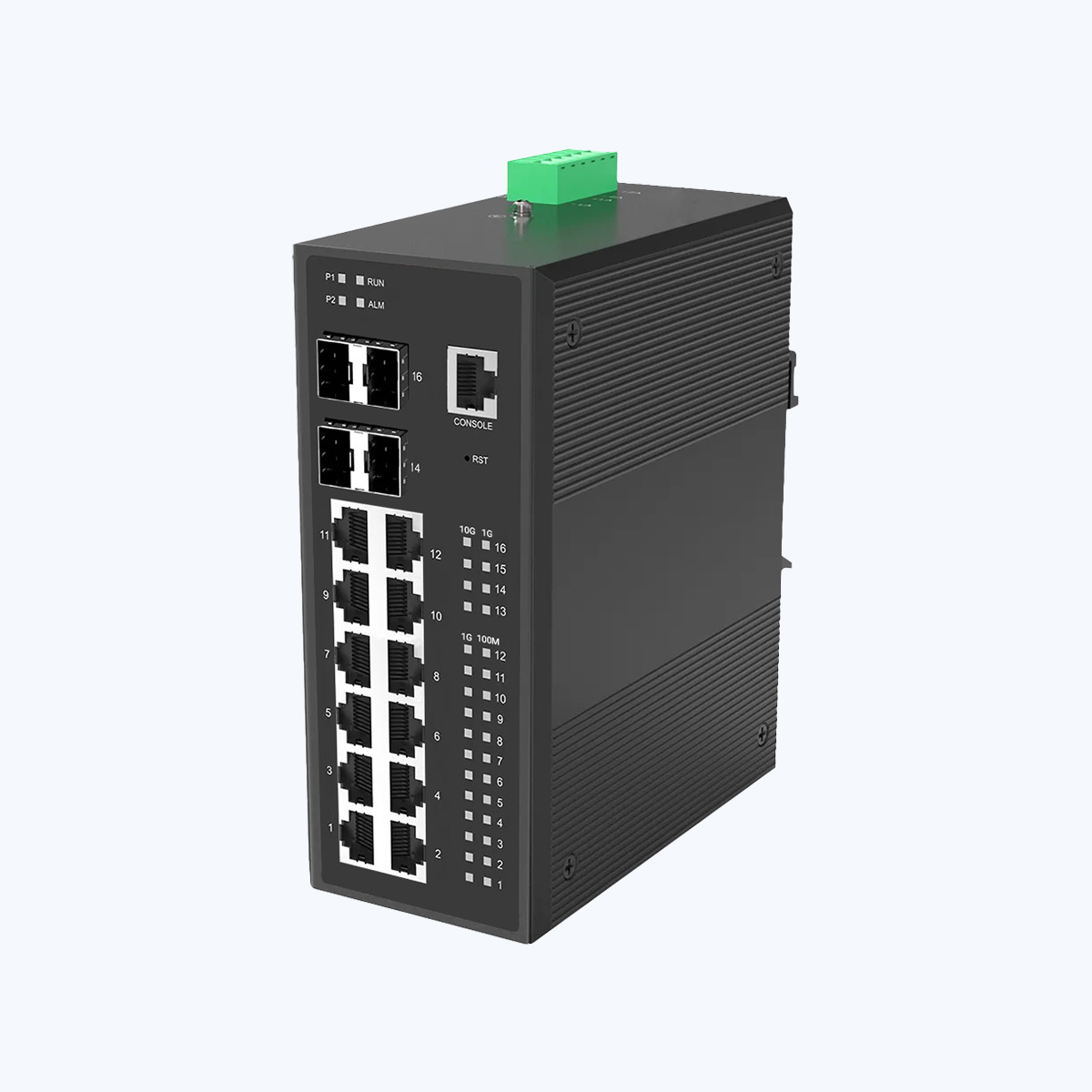

The BENCHU TSNS7500-12GE4TF-L3M is a 16-port switch option to evaluate for industrial networks requiring Gigabit access ports, 10G fiber uplinks, and Layer 3 functions. Confirm the required TSN features and environmental specifications against the current datasheet.
Define the application’s timing requirements first, then identify the required IEEE TSN functions, endpoint compatibility, port count, uplink bandwidth, management features, and operating environment. Confirm each required function against the switch’s current datasheet rather than relying on the term “TSN switch” alone.
A design can combine RJ45 access ports with SFP or SFP+ fiber uplinks when the selected model provides those interfaces. Check port speed, transceiver compatibility, link distance, and total uplink capacity against the network layout and connected equipment.
BENCHU works with networking brands, distributors, and system integrators on OEM/ODM and private-label opportunities. Share your target application, required interfaces, TSN functions, and project specifications so the team can review the relevant product options and customization requirements.
Include the application or industry, connected device types, required TSN standards or functions, RJ45 and fiber port requirements, uplink speeds, environmental conditions, and any OEM/ODM needs. These details help establish which specifications and compatibility points need to be reviewed.
Selecting a TSN switch involves more than port count and bandwidth. Your project may also require specific TSN functions, fiber uplinks, network management features, or customized product specifications.
Contact BENCHU to discuss your requirements for:
Share your target application, required interfaces, and preferred TSN functions so the team can help you review the relevant product specifications.
