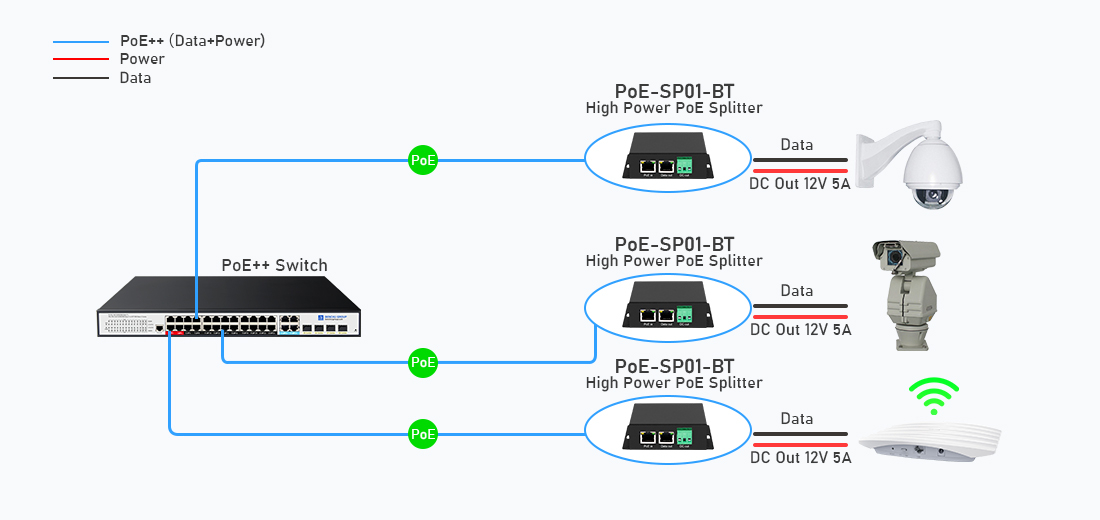

This deployment architecture delivers full-throttled IEEE 802.3bt power and line-rate gigabit data over a single Cat6 copper link up to a 100-meter channel constraint, executing localized DC-to-DC step-down conversion at the edge node to output a highly regulated, low-ripple 12VDC 5A (60W continuous) power matrix directly to non-PoE field hardware without local AC grid distribution drops or long-distance DC line attenuation.
Deploying high-load, non-native PoE edge equipment such as outdoor multi-sensor PTZ speed dome cameras and enterprise wireless access points reveals two major physical and economic bottlenecks:

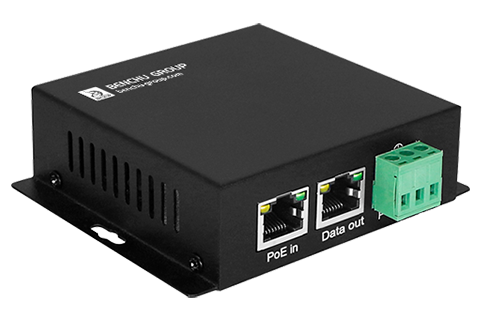

The BENCHU GROUP POE-SP01-BT high power splitter functions as a high-efficiency hardware bridge, natively negotiating with IEEE 802.3bt infrastructures to decode high-voltage power over copper and deliver a stabilized, ripple-suppressed 12VDC power line to drive sensitive non-PoE components at the physical layer.
| Core Electrical Parameters | Technical Specification, Benefits & Protections |
|---|---|
| Power Conversion Output | Decodes up to 90W high-voltage input to deliver an unthrottled, continuous 60W (12V 5A max continuous) low-noise DC output. |
| Dielectric Isolation Shield | Features a premium 3500V galvanic isolation barrier between input and output stages, acting as an active firewall against reverse electric surges. |
| Thermal Armor Casing | Features a rugged, fanless metal enclosure engineered for secure wall mounting to ensure robust deployment in harsh industrial setups. |
| Active Security Suite | Equipped with hardware-level Short Circuit protection, Overcurrent protection, and automatic thermal overload protection safeguards. |

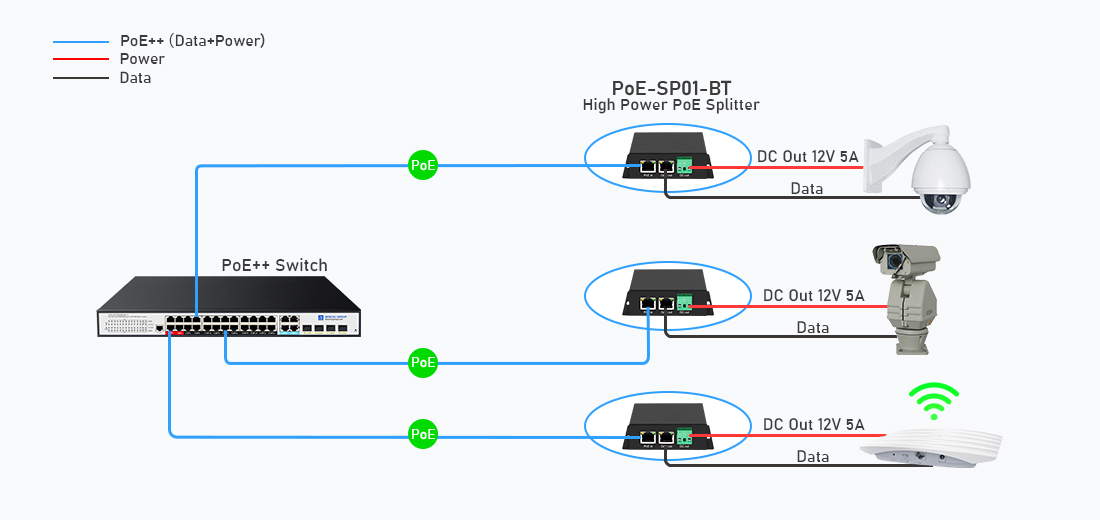

To achieve a zero-failure field deployment rating, engineering teams must strictly enforce the following termination sequence: First, seat the primary incoming overhead shielded Cat6 uplink carrying combined data and power firmly into the dedicated "PoE In" RJ45 port. Second, route the data stream by deploying a short, high-quality shielded pure copper patch cord from the "Data Out" port directly into the appliance's Fast/Gigabit Ethernet network interface. Third, terminate the 12VDC power distribution leads into the screw-locked green industrial Euro-style terminal block ("DC Out" interface). This local step-down architecture ensures the target hardware receives clean, continuous power while completely bypassing linear line attenuation and signal interference over long physical distances.
High Power Splitter for High-Capacity Remote Networking Infrastructures
A: This structural failure stems directly from impedance-induced voltage drop and power starvation. Edge PTZ hardware runs on low load during daytime cycles; however, activating high-draw integrated IR lamps and thermal heaters at night drives structural consumption to 45W-55W peak metrics. Standard low-voltage DC lines introduce cable resistance that drops the voltage below operational thresholds. Deploying a 60W PoE++ splitter resolves this by running high-voltage infrastructure across copper lines and stepping it down into a localized 12V 5A current directly at the edge boundary.
A: Remote towers, industrial masts, and steel mounting poles are highly susceptible to static accumulation, lightning discharges, and transient surge conditions. An industrial splitter configured with a 3500V galvanic isolation barrier forms a comprehensive physical layer firewall. If an overwhelming voltage strike attacks the terminal equipment, the internal circuitry safely disconnects the boundary loop, permanently blocking catastrophic power surges from traveling upstream down data cables and burning down centralized core routing switches.
Don't let unstable edge power delivery budgets and fragile consumer-grade accessories compromise your deployment profit margins. Speak directly with a BENCHU GROUP system design specialist to receive a comprehensive wiring evaluation, custom voltage profiling, or an enterprise project volume quote.
Request a Technical Consultation & Bulk Quote Now
