24 Port Industrial PoE Switch, with 4 Gigabit RJ45/SFP Uplink,24 PoE+ Ports@500W power budget, IES7221-24PGE4GC-AC

24 Port Industrial PoE Switch
24 Port Industrial Switch
Industrial PoE Switch
Industrial Switch

24 Port Industrial PoE Switch, with 4 Gigabit RJ45/SFP Uplink,24 PoE+ Ports@500W power budget, IES7221-24PGE4GC-AC

Pregunte ahora

Designed for IP Camera/Wireless Access Point

Product Highlights
    • 16 ports supporting PoE+ to PD device
    • Complies with IEEE 802.3af/at Power over Ethernet end-span
    • Supports PoE power up to 30 watts for each PoE port
    • Auto detects powered device (PD)
    • Supports contact discharge of ±8KV DC and air discharge of ±15KV
    • DC for Ethernet ESD protection
    • -40 to 85 degrees operating temperature
    • IP40 Industrial design with dual power input
    • Din Rail mounting installation
    • Backplane bandwidth 48Gbps，Packet forwarding rate 26.79Mpps，MAC address 8k

industrial network switch 24 port poe

Overview



IES7221-24PGE4GC-AC, 24 Ports Industrial PoE Switch,with 4 Gigabit RJ45/SFP Combo Uplink,24 PoE+ Ports@500W power budget, DIN-Rail mount

BENCHU GROUP's 24 port industrial PoE switch IES7221-24PGE4GC-AC is a rugged and reliable solution designed for harsh industrial environments. It features 24 PoE ports compliant with IEEE 802.3af/at standards, delivering up to 30W per port to power devices like IP cameras, access points, and VoIP phones. The 4 gigabit combo uplink ports support both RJ45 and SFP modules, providing flexible, high-speed connections to core networks or long-distance links.

This industrial switch offers plug-and-play simplicity, ensuring quick and effortless deployment without the need for configuration. Its industrial-grade design includes a durable metal housing, wide operating temperature range(-30℃~75℃), and built-in surge protection 8KV, making it ideal for outdoor surveillance systems, factory automation, and smart city infrastructure.

By combining reliable power delivery, robust performance, and low installation costs, this unmanaged 24 port industrial PoE switch empowers users to build scalable and efficient networks in even the most demanding environments.



Features

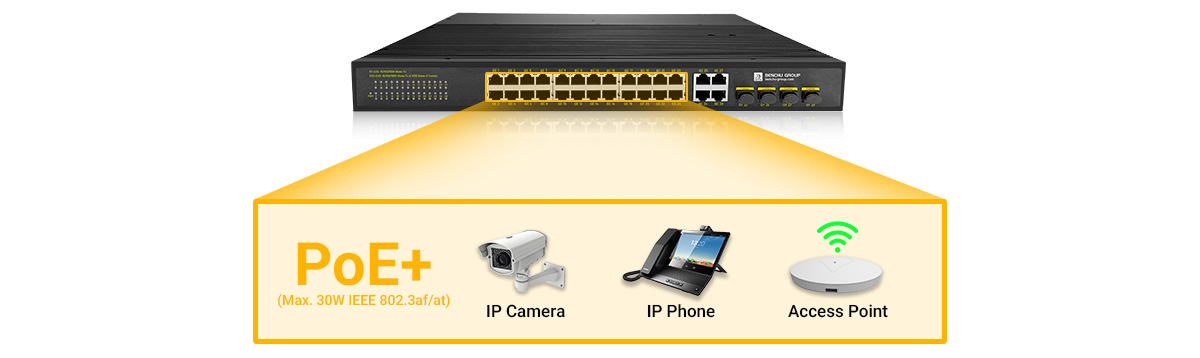

24 PoE Ports for Power and Connectivity

This industrial PoE switch features 24 ports that combine data and power transmission, providing seamless connectivity for devices like IP cameras, wireless access points, and VoIP phones. With support for IEEE 802.3af/at standards, it delivers up to 30W per port, enabling efficient power delivery to high-powered devices. The integrated PoE functionality reduces cabling requirements, simplifying deployment in challenging environments such as industrial facilities, outdoor installations, and remote locations where traditional power sources may not be accessible.



4 Gigabit RJ45/SFP Uplink Ports for High-Speed Backhaul

Equipped with 4 uplink ports that support both RJ45 and SFP modules, this 24 port industrial PoE switch ensures flexible high-speed connections to core networks or long-distance deployments. The uplink ports deliver gigabit speeds, making them ideal for handling large data transfers and connecting to backbone networks. Their versatility supports both copper and fiber modules, enabling reliable and scalable connectivity across various networking setups, including industrial sites and extended surveillance systems.



Industrial-Grade Design for Harsh Environments

This 24 port industrial PoE switch is built to withstand the rigors of industrial environments, featuring a rugged metal housing, wide operating temperature range(-30℃~75℃), and protection against shocks and vibrations. Its robust design ensures reliable performance in challenging conditions such as factories, outdoor enclosures, and transportation systems. Compliance with industrial standards makes it a dependable choice for mission-critical applications, even in extreme weather or high-temperature areas.



Plug-and-Play Simplicity

Designed for quick and hassle-free deployment, this unmanaged industrial PoE switch requires no complex configuration. Simply connect the devices, and the switch automatically optimizes the connection. With support for auto-negotiation and auto-MDI/MDIX, it ensures maximum compatibility with a variety of devices. The plug-and-play functionality is ideal for non-technical users, saving time and effort during installation in large-scale PoE-powered surveillance or industrial automation projects.



High PoE Power Budget for Demanding Applications

This switch supports a high PoE power budget, capable of delivering power to all 24 ports simultaneously. This is critical for applications requiring multiple high-powered devices, such as large-scale surveillance systems or wireless access points in industrial environments. The ability to power multiple devices without overloading ensures smooth and reliable operation, reducing the need for additional power sources or injectors.



Surge Protection and Reliable Performance

Integrated surge protection safeguards the switch and connected devices against power spikes and lightning strikes, ensuring uninterrupted operation in unpredictable industrial environments. This feature is particularly valuable in outdoor setups or areas prone to electrical disturbances, offering peace of mind for network reliability. Combined with its durable construction, the switch ensures long-term stability for critical systems.



Fanless Design for Silent Operation

This 24 port industrial PoE switch employs a fanless design that ensures silent operation while reducing dust accumulation. This design improves the device’s durability and makes it suitable for noise-sensitive environments like control rooms or office-adjacent industrial setups. Despite the absence of fans, the switch’s efficient heat dissipation ensures consistent performance, even during prolonged usage in high-temperature conditions.



Wide Application Scenarios

This 24-port PoE switch is ideal for diverse applications, including industrial automation, large-scale IP surveillance, smart city deployments, and wireless network expansion. Its rugged build, high PoE capacity, and gigabit uplinks make it a versatile solution for powering and connecting devices in complex environments. Whether used in outdoor installations or factory floors, it delivers reliable performance and simplifies network deployment, reducing both infrastructure costs and setup time.





Connectivity Solutions



24 Port Gigabit Industrial PoE Switch with 4 Gigabit RJ45/SFP Combo Uplink









Specification



  • Especificaciones técnicas :

    IES7221-24PGE4GC-AC

  • Puertos de cobre RJ45 de 10M/100M/1G :

    24

  • Combinación Gigabit R4J5 y SFP :

    4

  • Puertos PoE/PoE+ :

    24

  • Alimentación a través de Ethernet :

    *

  • Estándar PoE :

    IEEE 802.3at Power over Ethernet Plus/PSE； Backward compatible with IEEE 802.3af Power over Ethernet

  • Tipo de fuente de alimentación PoE :

    End-span: 1/2 (+), 3/6 (-)

  • Salida de alimentación PoE :

    Per port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)； Per port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)

  • Especificación de rendimiento :

    *

  • Memoria intermedia de paquetes :

    4.2 Mb

  • Modos de reenvío :

    Store-and-forward

  • Banda ancha :

    64 Gbps

  • Tasa de reenvío de paquetes :

    47.62Mpps (64 byte packet size)

  • Tamaño de la base de datos de direcciones MAC :

    8K (48-bit MAC ad-dresses)

  • Soporte de marco gigante :

    9K

  • Protocolos de red IEEE :

    *

  • Protocolos :

    • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-T • IEEE 802.3ab 1000BASE-T • IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX • IEEE 802.3af PoE • IEEE 802.3at PoE+ • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.3x Full-Duplex Flow Control

  • Supervisión :

    *

  • LED :

    Yes

  • Por puerto :

    Speed, Link, Activity; PoE in different mode

  • Por dispositivo :

    Power

  • Especificaciones físicas :

    *

  • Dimensiones (Ancho * Fondo * Alto) :

    440 x 290 x 46mm (17.32 x 11.42 x 1.81 in)

  • Peso :

    6.4 kg (14.11 lb)

  • requerimientos de energía :

    AC 100~260V, redundant power with reverse polarity protection

  • El consumo de energía :

    500W (when all ports used, line-rate traffic and max PoE)

  • máximo poder :

    15W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Consumo de energía inactivo :

    9W (all ports link-down standby) (Watts)

  • Ethernet energéticamente eficiente (EEE) :

    Yes (deactivated by default)

  • Admirador :

    Fanless

  • Especificaciones ambientales :

    *

  • Temperatura de funcionamiento :

    -40° to 85°C (-40° to 185°F)

  • Humedad de funcionamiento :

    95% maximum relative humidity (RH), non-condensing

  • Altitud de funcionamiento :

    10,000 ft (3,000 m) maximum

  • Temperatura de almacenamiento :

    -40° to 85°C (-40° to 185°F)

  • Humedad de almacenamiento (relativa) :

    95% maximum relative humidity, non-condensing

  • Altitud de almacenamiento :

    10,000 ft (3,000 m) maximum

  • Estándar ejecutivo y protección :

    *

  • Protección contra rayos :

    *

  • IEC61000-4-3 (RS) :

    10V/m (80~1000MHz)

  • FCC Parte 15/CISPR22 (EN55022) :

    Class B

  • CEI 61000-6-2 :

    Common Industrial Standard

  • IEC61000-4-9 (campo magnético pulsado) :

    1000A/m

  • IEC61000-4-10 (oscilación amortiguada) :

    30A/m, 1MHz

  • IEC61000-4-12/18 (onda de choque) :

    CM 2.5kV, DM 1kV

  • IEC61000-4-4(EFT) :

    Power cable:±4kV, Data cable: ±2kV

  • IEC61000-4-16 (transmisión en modo común) :

    30V, 300V, 1s

  • IEC61000-4-2 (ESD) :

    ±8kV contact discharge, ±15kV air discharge

  • IEC61000-4-6 (transmisión por radiofrecuencia) :

    10V(150kHz~80MHz)

  • IEC61000-4-8 :

    100A/m, 1000A/m, 1s-3s

  • IEC61000-4-5 (sobretensión): cable de alimentación :

    CM±4kV/ DM±2kV, Data cable: ±4kV

  • Propiedades mecánicas :

    *

  • IEC60068-2-6 :

    Anti Vibration

  • IEC60068-2-32 :

    Free Fall

  • IEC60068-2-27 :

    Anti Shock

  • Emisiones electromagnéticas e inmunidad :

    *

  • Certificaciones :

    CE mark, commercial； FCC Part 15 Class A, VCCI Class A； Class A EN 55022 (CISPR 22) Class A； Class A C-Tick； EN 55024； CCC； 47 CFR FCC Part 15, SubpartB, Class A ICES-003: 2016 Issue 6, Class A； ANSI C63.4:2014； IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

  • Seguridad :

    *

  • Certificaciones de seguridad :

    CB mark, commercial； CSA certified (CSA 22.2 #950)； UL listed (UL 1950)/cUL IEC 950/EN 60950； EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 ；(ed.2)+A1:2009+A2:2013； AN/NZS 60950.1:2015； CCC (China Compulsory Certificate)

  • Garantía y soporte :

    *

  • Garantía limitada de hardware :

    Limited Lifetime*

  • Soporte técnico por teléfono y correo electrónico* :

    Limited Lifetime*

  • Soporte técnico por chat en línea 24 horas al día, 7 días a la semana :

    Limited Lifetime*

  • contenidos del paquete :

    *

  • Todos los modelos :

    Industrial PoE Switch；Brackets and screws for DIN-Rail mounting which are already installed in the industrial switch ； Rubber protection caps, which are already installed in the SFP sockets Installation guide

  • Tipo de negocio :

    Industrial

  • bandido :

    1G

  • Más filtros :

    Unmanaged
