Power over Fiber (PoF) Guide: How a 24-Port L3 Managed PoF Switch Builds 500m Campus Backbones
CATEGORY: NETWORK INFRASTRUCTURE & BACKBONE EXTENSION | AUTHOR: BENCHU GROUP NETWORK ENGINEERING TEAM
A Power over Fiber (PoF) Switch is a network backbone device that delivers Gigabit optical data and up to 500W centralized DC power over hybrid optical-electrical cables across distances up to 500 meters. The 24-Port Layer 3 Managed PoF Switch (SP7500-24PGF2TF-L3M) integrates 24 Gigabit PoF ports, dual 10G SFP+ uplinks, and advanced Layer 3 routing to build isolated long-distance campus, industrial, and smart infrastructure networks.
📍 500m Long-Distance Power & Data Delivery ⚡ 500W Centralized DC Power Budget 🚀 Dual 10G SFP+ Backbone Uplinks 🛡️ 100% Galvanic Isolation
- 500m Long-Distance Deployment: Extends beyond the traditional 100-meter copper Ethernet limitation by transmitting power and Gigabit data through hybrid optical-electrical cables, reducing the need for remote AC infrastructure.
- Galvanic Isolation & Surge Protection: The non-conductive optical data path eliminates conductive ground loops and minimizes lightning surge propagation, making PoF suitable for outdoor campuses, industrial facilities, and electrically noisy environments.
- Layer 3 Enterprise Routing: Provides hardware-based IPv4/IPv6 routing, OSPFv2, VRRP, VLAN segmentation, and an 80Gbps non-blocking switching fabric for high-density enterprise network aggregation.

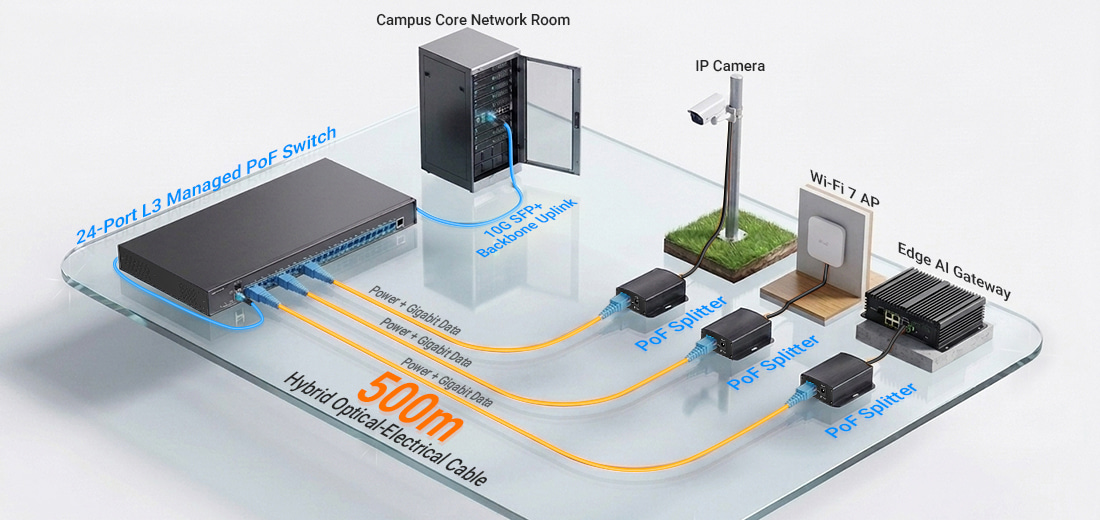

Figure 1: Centralized 500W PoF backbone topology supplying power and 10G optical aggregation over 500-meter hybrid media.
1. Network Deployment Architecture: PoF vs. Copper PoE vs. Fiber + Local AC
Extending network nodes beyond standard horizontal cabling parameters requires balancing voltage drop, attenuation, and infrastructure CAPEX/OPEX:
Physical Limit: 100m
Cat6A Copper PoE (IEEE 802.3bt)
Traditional PoE deployments are limited by the standard 100-meter copper Ethernet channel. As cable length increases, conductor resistance causes higher voltage drop and I²R power loss, reducing available power at remote endpoints and creating conductive paths for surge and ground loop issues.
High TCO & Additional Infrastructure
Pure Fiber + Local AC Power
Fiber-only networks solve distance limitations but still require local electrical infrastructure at remote sites. AC distribution, protection equipment, and maintenance access increase installation complexity, civil construction costs, and long-term operational expenses.
Recommended: 500m Range
Centralized Power over Fiber (PoF Architecture)
PoF combines optical data transmission and isolated electrical power delivery through hybrid optical-electrical cables. By centralizing power backup and management at the network core, PoF reduces remote AC dependency while providing 500-meter long-distance connectivity with complete optical data-path isolation.
2. Quantitative Backbone Media Metrics
| Parameter |
Copper Cat6A PoE (IEEE 802.3bt) |
Fiber + Local AC Power |
24-Port L3 Managed PoF Switch |
| Maximum Transmission Distance |
100 meters copper Ethernet channel |
10+ km fiber link capability |
500 meters hybrid optical-electrical cable |
| Data Channel Media |
4-Pair balanced copper |
Single-mode fiber (OS2) |
Single-mode fiber within hybrid cable |
| Galvanic Isolation |
No isolation (conductive metallic path) |
Optical isolation on data channel |
100% galvanic isolation between power and data |
| Power Architecture |
Distributed PoE PSE (Endspan) |
Local AC power infrastructure |
Centralized 500W DC power budget |
Core System Components: Building the End-to-End PoF Network
To successfully deploy an intrinsically safe, centralized optical powering infrastructure, the system utilizes two complementary hardware elements. Explore our perfectly matched transmitter and receiver nodes below:

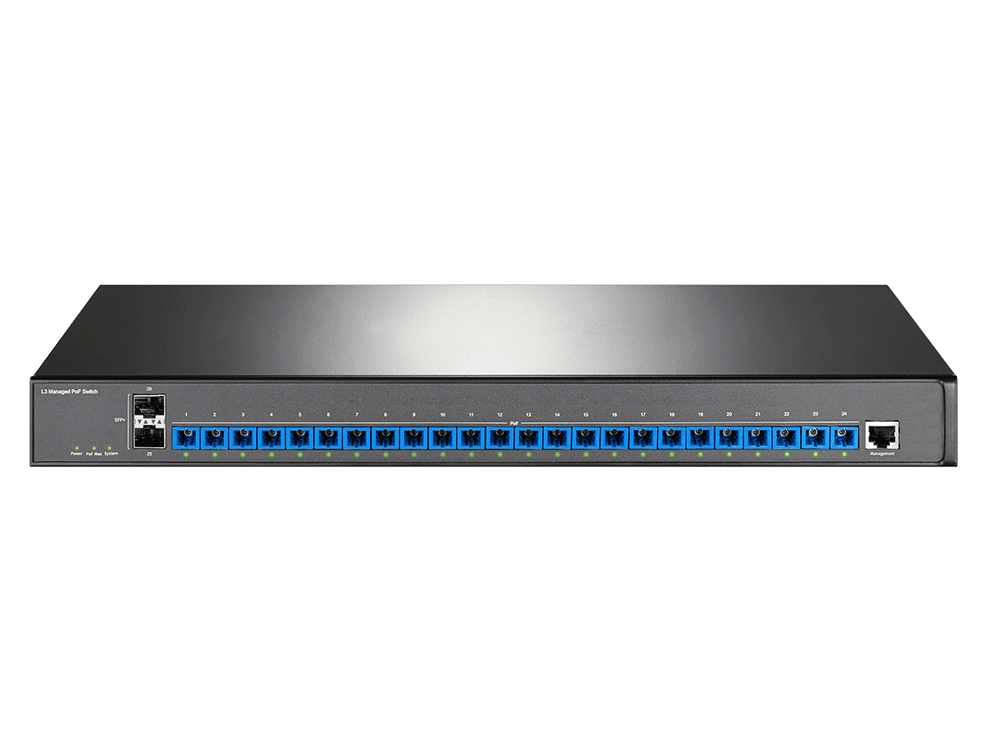

1. CENTRAL TRANSMITTER
SP7500-24PGF2TF-L3M
24-Port Gigabit PoF + 2-Port 10G SFP+ L3 Managed Switch
The server room hub. Manages hardware-level Layer 3 enterprise routing and injects a massive 500W aggregate low-voltage DC budget directly into long-distance hybrid powered fiber lines up to 500 meters away.

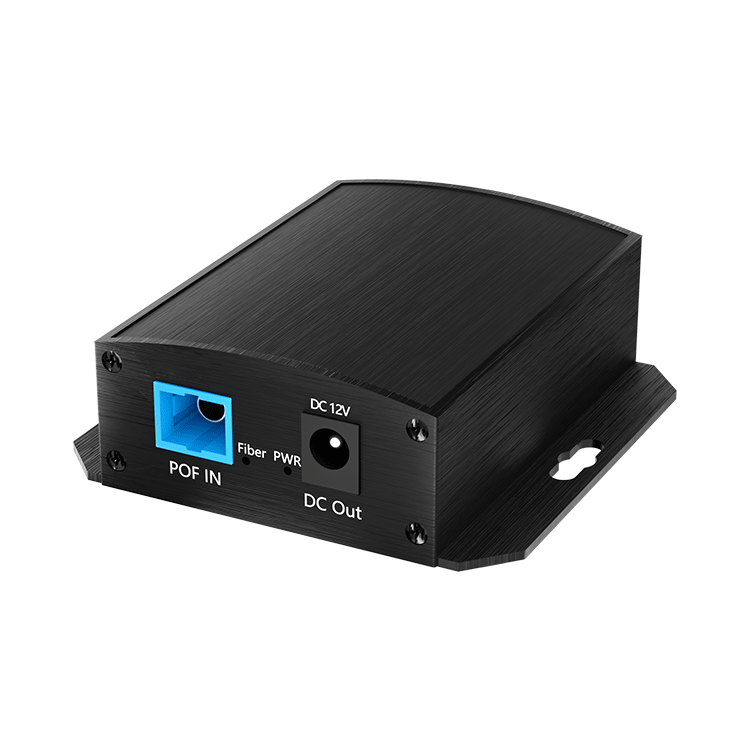

2. EDGE RECEIVER ENDPOINT
PoF-SPL-1G12V
Remote Industrial Power over Fiber Splitter
The field-end terminal. Decouples the 500m SC hybrid composite cable line, adapting the net 15W continuous power budget into flexible dual powering outputs: standard PoE Gigabit RJ45 and a circular DC 12V barrel jack.
3. Critical Engineering Considerations for 500m PoF Deployments
Deploying reliable Power over Fiber backbones requires careful planning across cable design, power delivery, and network performance requirements:
1. CABLE COMPLIANCE
Hybrid Media Resistance Specifications
Select appropriate copper conductor gauge based on DC resistance calculations. Ensure delivered voltage at 500 meters meets remote endpoint startup requirements under maximum 30W load conditions.
2. TRAFFIC CONTROL
Layer 3 Network Segmentation
Leverage hardware-based OSPF and VLAN routing to segment campus traffic efficiently. Layer 3 policies reduce unnecessary broadcast propagation and optimize high-bandwidth IP camera and IoT traffic flows.
3. BACKHAUL CAPACITY
10G SFP+ Trunking
Utilize dual 10G SFP+ uplinks for core network aggregation. High-capacity fiber backhaul efficiently supports multiple Gigabit PoF channels connecting remote edge devices to central storage and management platforms.
Engineering Summary & B2B ODM Capabilities
Deploying the 24-Port Layer 3 Managed Power over Fiber Switch (SP7500-24PGF2TF-L3M) enables a 500-meter Power over Fiber campus backbone with centralized 500W power management and high-capacity 10G uplink aggregation. This architecture reduces remote AC infrastructure requirements while providing galvanic isolation on the optical data path and minimizing surge propagation risks.
OEM/ODM Customization: BENCHU provides complete hardware and firmware engineering support for system integrators, including customized chassis designs, L3 firmware feature tailoring, customized power budgets, and specialized SFP module validation for enterprise and industrial network deployments.
Architecting a 500m Power over Fiber Network?
Contact BENCHU network engineers for technical datasheets, deployment guidance, evaluation units, and customized OEM/ODM solution proposals.
