Executive Summary
Deploying off-grid solar surveillance requires balancing severe power constraints with harsh atmospheric environments. This brief outlines how to select the optimal PoE hardware to ensure 24/7 uptime by prioritizing ultra-low idle power, wide DC voltage inputs, robust hardening, and remote automated management.
1. Power Architecture Matching: DC-DC Voltage Regulation
2. Thermal & Environmental Hardening
3. Network Topology: Managed vs. Unmanaged
Remote edge site lockups require expensive on-site troubleshooting. Choosing the right switching intelligence cuts heavy operational overhead:
Managed Infrastructure
A layer 2 managed PoE switch allows remote power monitoring, VLAN setup, and automated self-healing protocols to reset stuck cameras without dispatching trucks.
Unmanaged Frameworks
Best for simple, localized point-to-point setups where low cost is the main driver.
4. Power Budgeting & High-Draw Device Support
Solar nodes power mixed loads: fixed cameras use 5-7W, but high-speed PTZ cameras with IR/thermal sensors pull up to 60W-90W at night.
Deploy an outdoor PoE switch supporting both IEEE 802.3at (PoE+) and IEEE 802.3bt (Hi-PoE). This guarantees high-draw devices receive dedicated power without causing brownouts across the security node.
Technical Selection Framework
| Technical Parameter | Engineering Requirement |
|---|---|
| Voltage Regulation | Wide range 12V-54V DC boost input |
| Operating Temp | -40°C to +75°C (-40°F to 167°F) |
| Surge Immunity | 6KV common mode, 4KA differential mode |
| Uptime Automation | PoE Watchdog function for automated camera power-cycling |
Core White-Label Portfolio Configurations
High-performance OEM/ODM platforms ready for full visual and software stack customization.

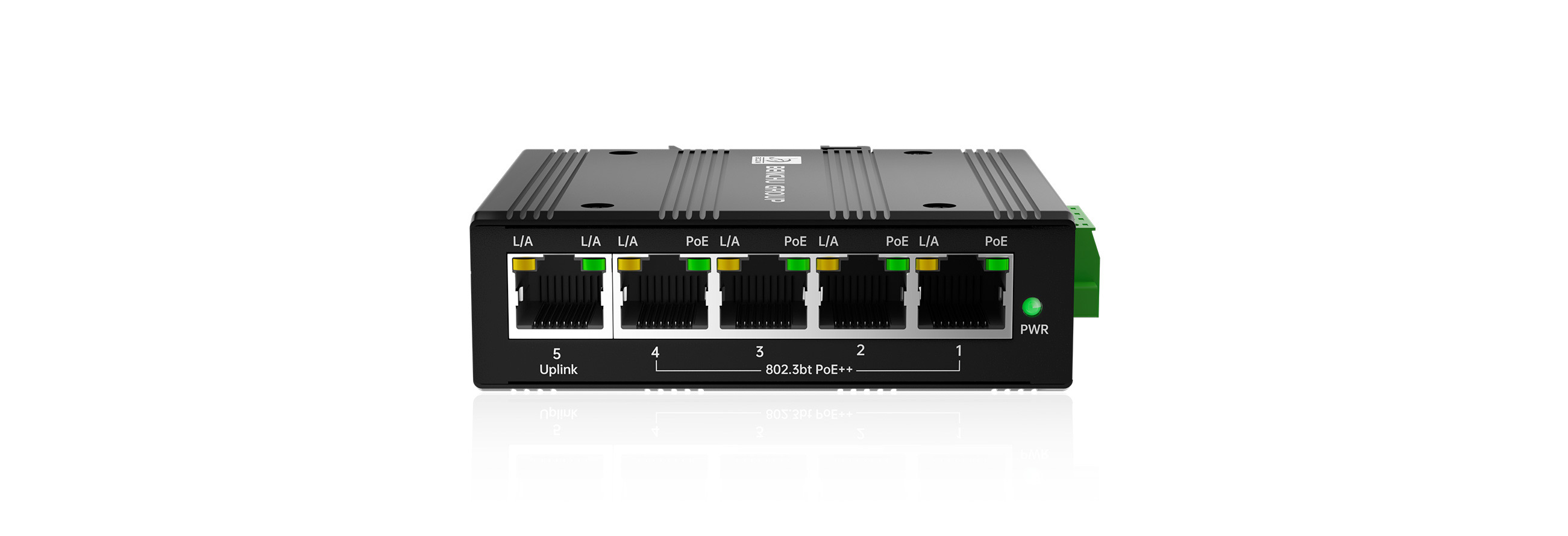

IES7211-4PGE1GE-BT-SOL
5-Port Solar Powered PoE++ Switch | 12V/24V DC Input To 48V/54V PoE++ 90W Out | Outdoor Unmanaged Gigabit Switch for Solar Surveillance
- Designed for Solar: Wide DC input (9V-54V) with integrated 48V~54V boost technology to power standard PoE devices.
- High Efficiency: 4 Gigabit PoE ports + 1 Gigabit Uplink, ideal for remote IP cameras and wireless bridges.
- Rugged Reliability: Fanless design with -40°C to +75°C operating range and 6kV surge protection.
- Plug & Play: No complex configuration needed; optimized for outdoor cabinet installations.

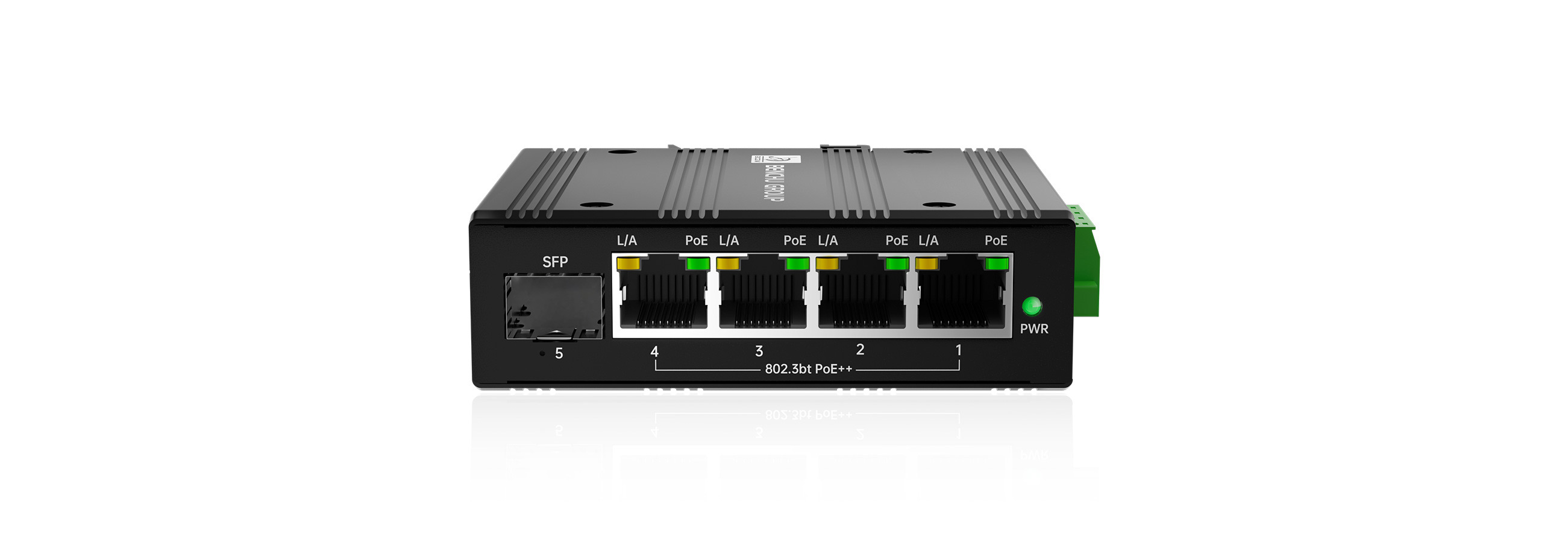

IES7211-4PGE1GF-BT-SOL
90W Solar Powered Industrial PoE++ Switch With SFP | 4-Port Gigabit 802.3bt PoE & 1-Port SFP | 12V/24V To 48V Voltage Boost
- Intelligent Voltage Boost: Integrated booster converts 12V or 24V DC battery input into stable 48V-55V PoE output.
- 90W Ultra PoE++ (IEEE 802.3bt): Features 4*Gigabit PoE++ ports delivering up to 90W each for high-load devices.
- Gigabit SFP Port: Dedicated Gigabit SFP slot supports fiber optic connectivity, enabling high-speed long-range backhaul.
- Ultra-Compact Design: The tiny footprint (smaller than a deck of cards) saves critical space in solar cabinets.

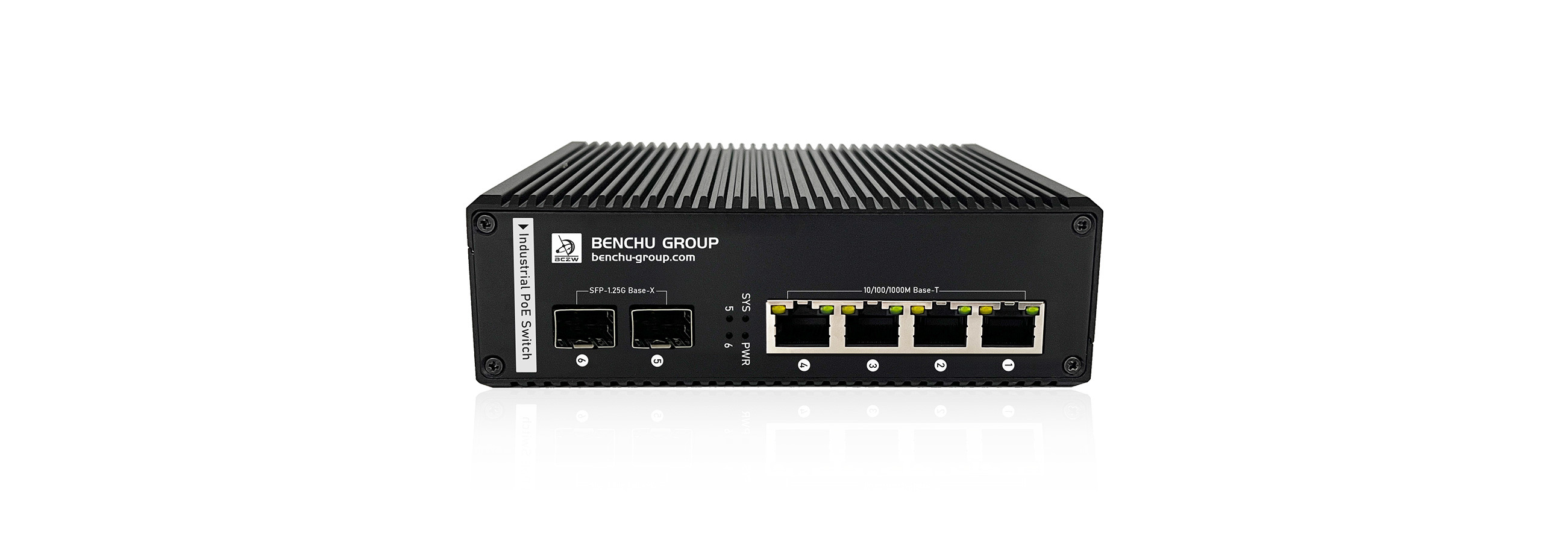

IES7511-4PGE2GF-SOL
Industrial 4 Port Gigabit Managed Solar PoE Switch With 2 Gigabit SFP Uplink, Designed for IP Camera / Wireless Access Point
- DC Input Voltage 12V/24V/48V to the industrial switch directly from storage battery.
- 4 ports supporting PoE+ to PD device with up to 30 watts for each PoE port.
- ERPS (G.8032) STP/RSTP/MSTP for Ring network and Link protection.
- Layer 3 static routing (IPv4 and IPv6) for inter VLAN local routing.

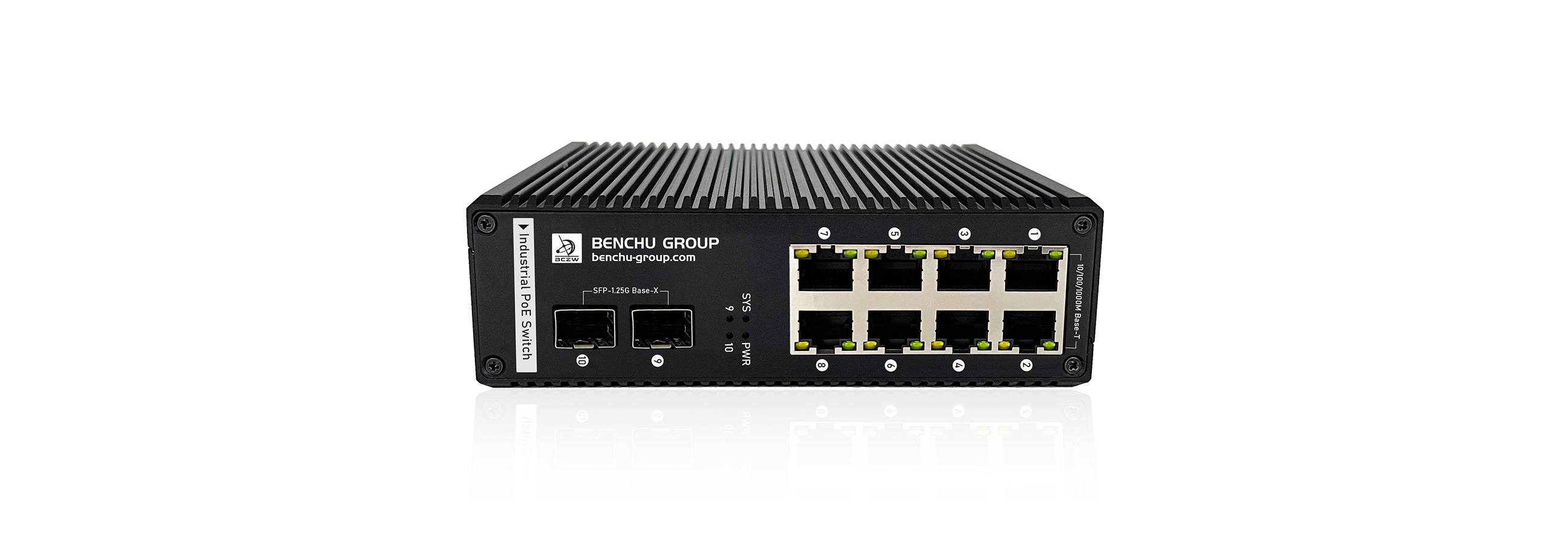

IES7511-8PGE2GF-SOL
Industrial 8 Port Gigabit Managed Solar PoE Switch With 2 Gigabit SFP Uplink, Suitable for solar power, wind power, industrial areas
- DC Input Voltage 12V/24V/48V to the industrial switch from storage battery.
- Port 1-8 supporting PoE+ to PD device, compliant with IEEE 802.3af/at standard.
- Advanced Management: Includes VLANs, PoE scheduling, ACLs, DiffServ, LACP, MVR and DHCP.
- Rugged Industrial Design: IP40 housing, -40 to 85 degrees operating temperature with redundant power input.
